Stone Limestone Ball Mill for Gold Mining Processing Plant Based on Different Models

Name: Stone Limestone Ball Mill for Gold Mining Processing Plant Based on Different Models
Brand: Sinolion
Price: 2 USD

Quality Stone Limestone Ball Mill for Gold Mining Processing Plant Based on Different Models for sale

Applicable Industries : Energy & Mining

Showroom Location : Egypt, Turkey, United States, Brazil, Mexico, Russia, Kenya, Nigeria, Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 Year

Core Components : Motor

Condition : New

Type : Ball Mill

Motor Type : AC Motor

Capacity(t/h) : 0.5-83t/h

Place of Origin : Henan, China

Brand Name : Sinolion

Dimension(L*W*H) : Based on different model

Weight : 3600 KG

Warranty : 2 years for the quality of equipment

Application : gold ore iron copper, quartz limestone,clinker,cement,chromite,Al2o3

Liner : high manganese, rubber, ceramic(as client request)

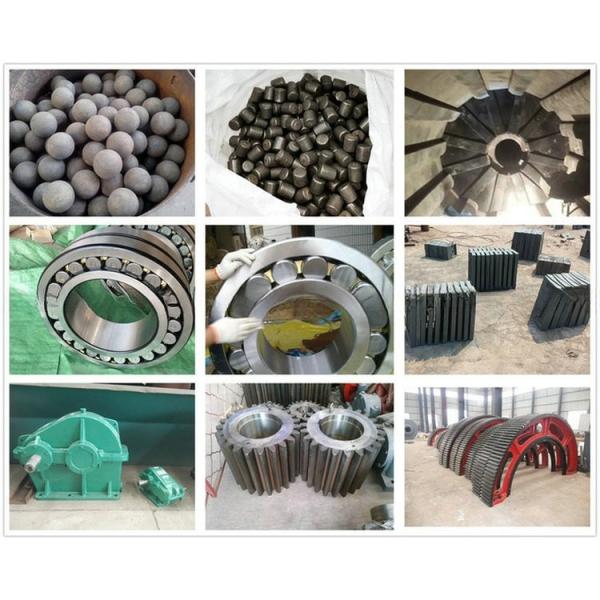

Spare parts : liner, grinding balls, grinding media

Grinding material : calcium carbonate, calcite, dolomite,bauxite,aragonite

Operation : automatic or manual

After sale service : the whole using life

Grinding way : wet type or dry type or batch type

Including : gearbox, gear, pinion, liner, manual, bearing, specifications

Color : yellow, white, red, blue, gray( or as client request)

Product name : Gold Mining Processing Plant Stone Process Limestone Ball Mill Factory

Price : $2,686.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Gold Mining Processing Plant Stone Process Limestone Ball Mill Factory

Product Description

The ball mill is a key equipment to grind the crushed materials, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics

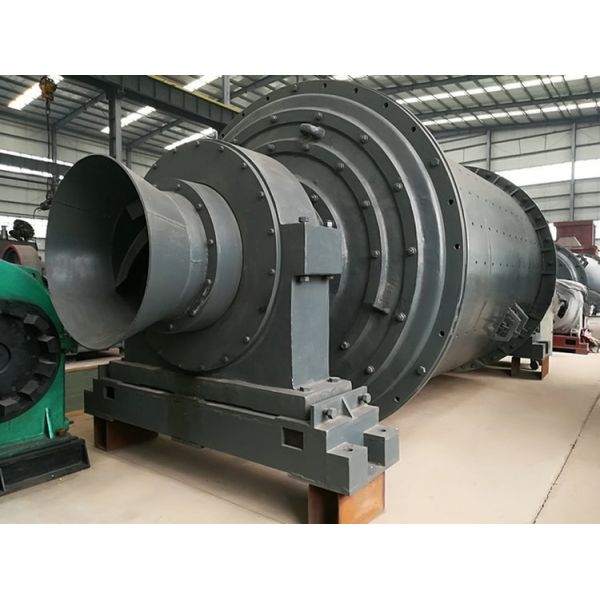

Ball mill main parts : feeding part ,discharging part, ball mill cyclinder, transmission (reducer, gear, pinion, electric motor and electric control) and other major parts.

Stone Limestone Ball Mill for Gold Mining Processing Plant Based on Different Models

Grinding is the last stage in the process of communication; in this stage the particles are reduced by a communication of impact and abrasion, either dry or in suspension in waterBall mills rotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. It is performed in rotating cylindrical steel vessels known as tumbling mills.

Wet dry gold ball mill for sale technicial parameters:

Model	Rotation speed (r/min)	Weight of grinding media (ton)	Size of feed opening (mm)	Discharge size (mm)	Capacity (t/h)	Power (kw)	Weight (T)
Φ 900x1800	38	1.5	≤ 20	0.075-0.89	0.65-2	18.5	3.6
Φ 900x3000	38	2.51	≤ 20	0.075-0.89	1.1-3.5	22	4.6
Φ 1200x2400	32	3.8	≤ 25	0.075-0.6	1.5-4.8	30-45	12.5
Φ 1200x3000	32	5	≤ 25	0.074-0.4	1.6-5	30-45	12.8
Φ 1200x4500	32	7	≤ 25	0.074-0.4	1.6-5.5	55	13.8
Φ 1500x3000	27	8	≤ 25	0.074-0.4	2-5.8	75-90	17
Φ 1500x4500	27	14	≤ 25	0.074-0.4	3-6.5	110	21
Φ 1500x5700	27	15	≤ 25	0.074-0.4	3.5-8	132	24.7
Φ 1830x3000	24	11	≤ 25	0.074-0.4	4-10	180	28
Φ 1830x6400	24	23	≤ 25	0.074-0.4	6.5-15	210	34
Φ 1830x7000	24	25	≤ 25	0.074-0.4	7.5-17	245	36
Φ 2200x5500	21	30	≤ 25	0.074-0.4	10-22	370	48.5
Φ 2200x6500	21	31	≤ 25	0.074-0.4	14-26	280	52.8
Φ 2200x7500	21	33	≤ 25	0.074-0.4	15-29	475	56

Stone Limestone Ball Mill for Gold Mining Processing Plant Based on Different Models

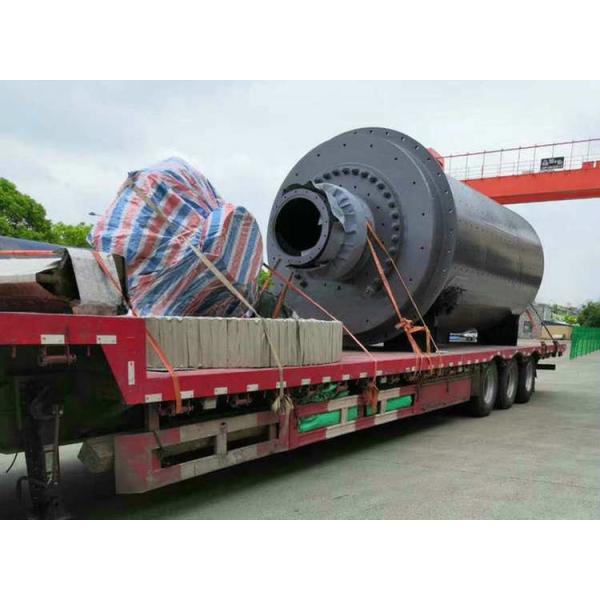

Packaging & Shipping

Packing Details : All products will be processed to be rustproof and moisture proof before delivery.

20GP container or 40GP container

Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motro is packed with steel case or wooden case. Control panel is packed with steel case.

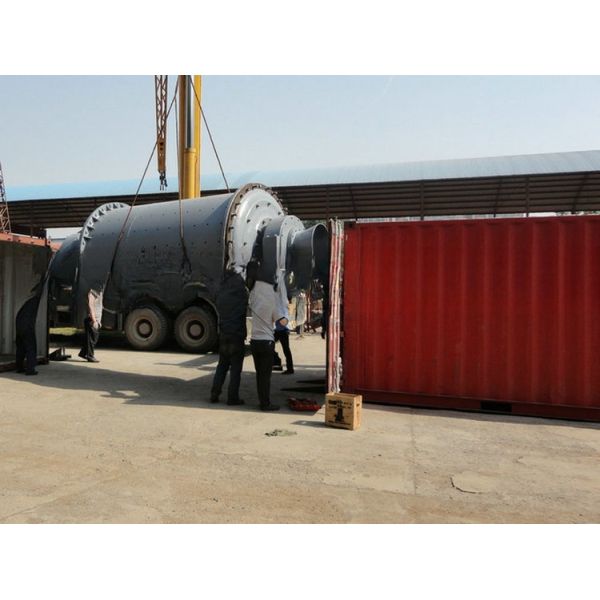

Loading container in factory.

Delivery Details : 15-25 days after confirming order,detail delivery date should be decided according to production season and order quantity.

Stone Limestone Ball Mill for Gold Mining Processing Plant Based on Different Models

Case

Stone Limestone Ball Mill for Gold Mining Processing Plant Based on Different Models

Stone Limestone Ball Mill for Gold Mining Processing Plant Based on Different Models Images
