Mobile Gold Mining Machinery for Small Scale Ore Processing Discharge Size Less Than 6mm

Name: Mobile Gold Mining Machinery for Small Scale Ore Processing Discharge Size Less Than 6mm
Brand: Sinolion
Price: 3 USD

Quality Mobile Gold Mining Machinery for Small Scale Ore Processing Discharge Size Less Than 6mm for sale

Applicable Industries : Energy & Mining

Showroom Location : Canada, United Kingdom, United States, Brazil, Mexico, Russia, Argentina, Australia

Condition : New

Type : Gravity Separator

Production Capacity : 98%

Place of Origin : Henan, China

Brand Name : Sinolion

Voltage : 380V/415V/440V

Dimension(L*W*H) : As per different model

Weight : 2200 KG, 6.5-10T

Warranty : 1 Year

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, PLC

Key Selling Points : Low Noise Level

Product name : Gold mining equipment portable gold trommel wash plant large capacity

Power : 5.5KW, 7.5KW, 11KW

Dimension : depends on model

Application : alluvial gold washing, diamond, rock, soil, river gold

Installation : supply manual to guide user

Capacity : 30-150 tons per hour

Feeding size : less than 300mm

Discharge size : less than 6mm

Color : yellow, white, red, blue, gray( or as client request)

Price : $3,500.00/sets 1-1 sets

MOQ : 1 unit

Contact Now

Tanzania 10 TPH rock gold processing plant

The material processed by the Tanzanian gold processing plant is rock gold, which is a kind of oxidized gold ore. The gold particle size of the rock is very fine. The production capacity is 10 tons/hour. The feed size is 0-125 mm.

The plant uses the gravity method. The equipment is configured as a jaw crusher+ hammer crusher + ball mill +SPIRAL CLASSIFIER+ shaking table. The result is that the free gold recovery rate is 97%. This plant is very popular with African gold miners, as it has the lowest cost and fastest return compared with the flotation plant.

Mobile Gold Mining Machinery for Small Scale Ore Processing Discharge Size Less Than 6mm

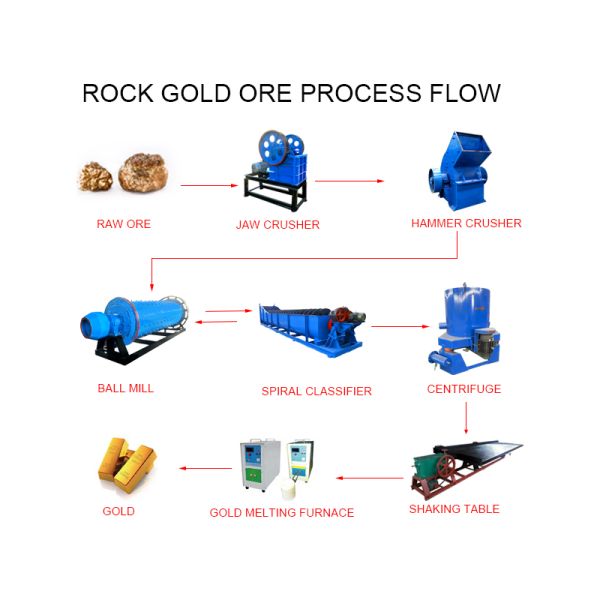

Gold processing steps:

1.Two-stage crushing

Large gold ore is first crushed by a jaw crusher, then crushed by a hammer crusher.

Jaw crusher

Hammer crusher

2. Grinding

The material coming out of the ball mill enters the spiral washing machine, and the larger size material is determined based on the output and re enters the ball mill for grinding, while the smaller size material enters the centrifuge

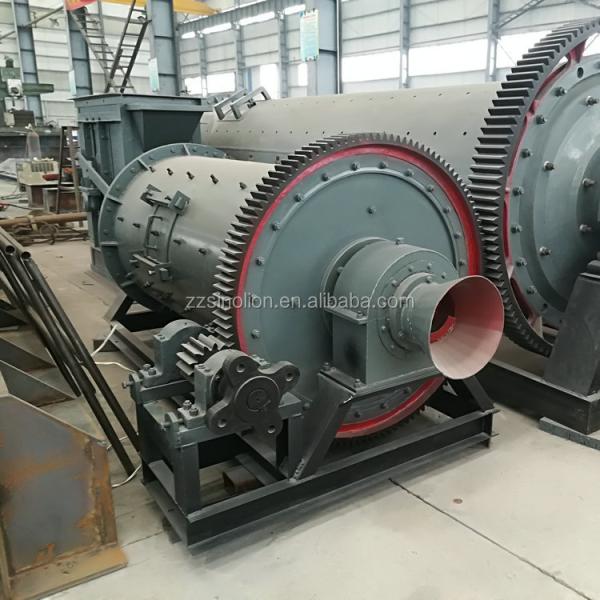

Ball Mill

Spiral Classifier

3.Gold extraction

The materials ground by the ball mill enter the centrifuge concentrator. The centrifuge concentrator separates materials of different particle sizes through centrifugal force and gravity. The separated concentrate enters the shaking table for further collection to obtain the final concentrate.

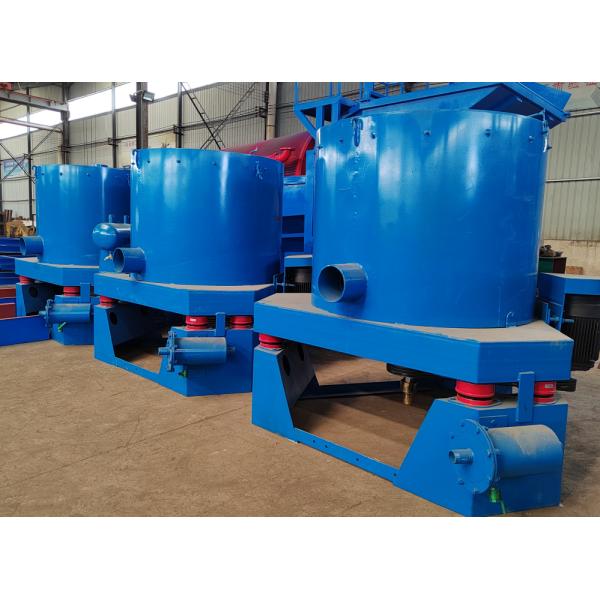

Gold centrifuge

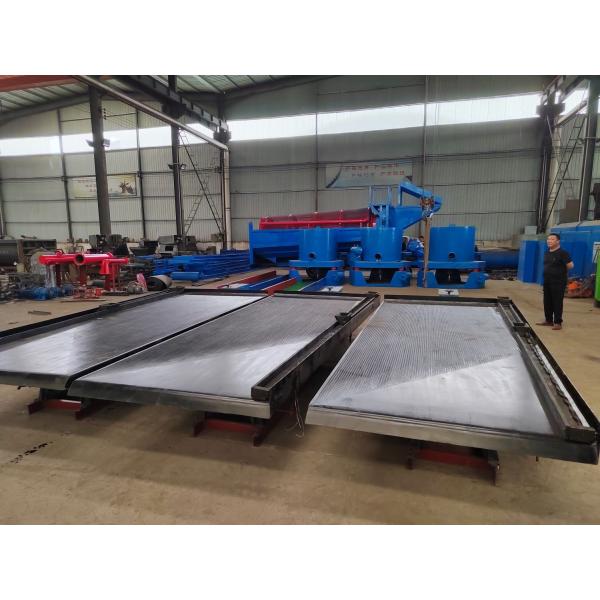

Shaking Table

4.Processing gold

GOLD MELTING FURNACE

Gold

Discuss your project with our experts

Q. What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.

Q: Whats the capacity of the gold /diamond mining equipment?
A: From 5TPH to 500 TPH.

Q: What brand engine / diesel generator do you use?
A: Cummins, Weichai, Yuchai or as required.

Q: Are you mining machinery manufacturer?
A:Yes, we can also provide samples test, mine design, equipment manufacture, after-sale service, etc.

Q: Is it possible to produce customized products ?
A: Yes, we supply customized product service as required.

Q: Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.

If you want to know more details, please contact me

Mobile Gold Mining Machinery for Small Scale Ore Processing Discharge Size Less Than 6mm Images
