200 Tons Per Hour Alluvial Gold Mining Equipment for Separating Mine Processed Materials

Name: 200 Tons Per Hour Alluvial Gold Mining Equipment for Separating Mine Processed Materials
Brand: ZHENGZHOU Sinolion
Price: 17 USD

Quality 200 Tons Per Hour Alluvial Gold Mining Equipment for Separating Mine Processed Materials for sale

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining

Showroom Location : Egypt, United Kingdom, United States, France, Germany, Brazil, None

Condition : New

Type : Gravity Separator

Production Capacity : 100-200t/h

Place of Origin : Henan, China

Brand Name : ZHENGZHOU Sinolion

Voltage : 380V/415V/440V

Dimension(L*W*H) : 8000x2200x4000mm

Weight : 6800 KG

Warranty : 1 Year

Marketing Type : Hot Product 2023

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Pump, Gear, Pressure vessel, Engine, Gearbox

Key Selling Points : Patented Product

Application : Alluvial Gold Washing

Product name : Gold Wash Plant

Processed materials : Separating Mine

Installation : Under Guidance

Function : Screening\separation\sorting\sieving

Usage : Mining Concentration

Material : Steel

Capacity : 150-200t/h

After sale service : One Year

Color : As your request

Price : $17,900.00/sets

MOQ : 1 unit

Contact Now

Product Description

The mini gold screen equipment is mainly used in dry land beach, river is a gravity processing equipment is mainly used in sand gold ore and the recovery of monomer gold in the vein.it can be easily movable on land, it has a compact structure, strong integrity, light weight, large handling capacity, simple operation, reliable work, and easy maintenance, easy to move and so on.The processing capacity of this equipment can reach 150-200t/h per hour, which is suitable for mineral processing sites, and the recovery rate of screened gold can reach 90%.

200 Tons Per Hour Alluvial Gold Mining Equipment for Separating Mine Processed Materials

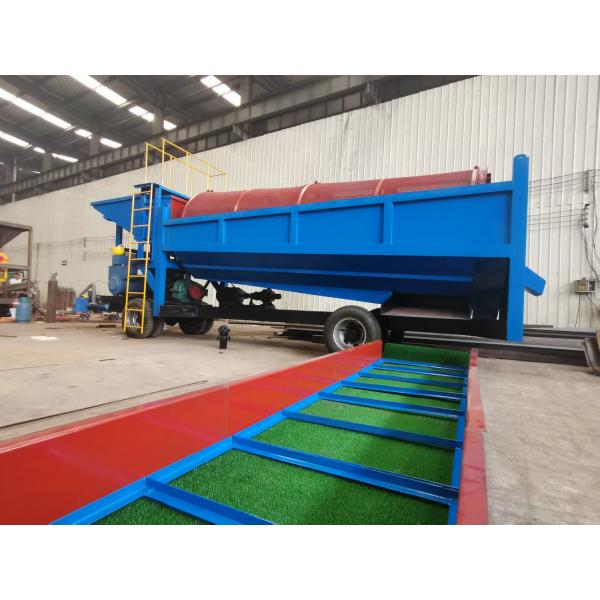

There is a workbench at the feed inlet and a ladder on one side of the workbench. Workers can stand on the workbench through ladders to observe the unloading situation of the feed port, which can better cooperate with the work of the equipment. The equipment is equipped with traction and 4 tires, which allows you to move the equipment anytime and anywhere, which is very convenient and fast.

Gold Mobile Trommel Screen 1848 can be washing and screening.Hopper 3m³.When the alluvial gold and placer gold enter the drum device, due to the tilt and rotation of the drum device, the materials on the screen surface are flipped and rolled, so that the qualified materials are discharged through the outlet at the bottom of the rear end of the drum, and the unqualified materials are discharged through the outlet at the rear end of the drum. Discharge from the discharge port.Gold Mobile Trommel Screen 1848 is equipped with two discharging ports,which can collect more gold faster.

The screen drum adopts a double-layer structure, with an inner layer diameter of 1150mm and an outer layer diameter of 1800mm. The inner layer is made of round steel screen bars and the outer layer is made of manganese wire braided mesh, which effectively prevents large materials from impacting the screen and increases the service life of the screen. In addition, the screen cylinder is divided into two parts. The diameters of the screen holes of the front and rear cylinders are different, which can better screen materials. The mud mixing section is 500mm, which can break through hard rocks wrapped in gold.

Products Details

Specifications

Model	GMTS-1800x4800
Drum Diameter	1800mm
Drum Length	4800 mm
Towing Hook	Include
Mixing section length	500mm
Rubber Tires Quantity	4 pieces
Spray Pipe Material	Galvanized seamless pipe
Capacity	150-200 tons/hour
Engine	Diesel engine Electric engine
Sluice Box	1000x6000mm
Grizzly	Steel bar diameter 20-30mm Bar spacing 30mm Input hopper: 3m³

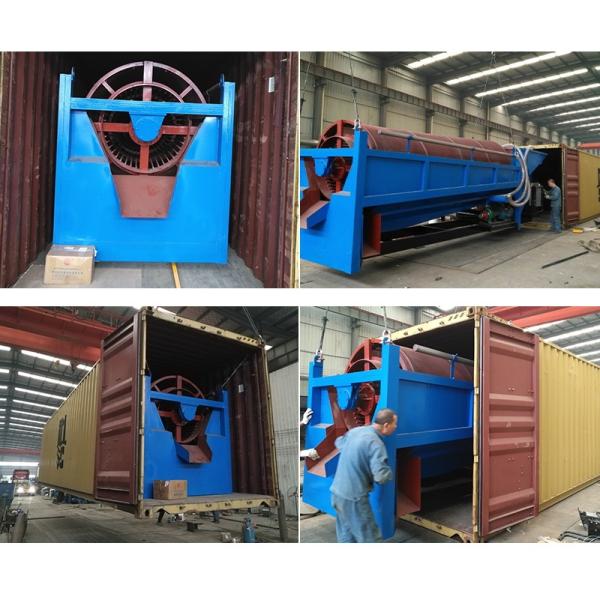

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certifications

Company Profile

Sincerely welcome to send your inquiry, you can get best quotation and professional service!

FAQ

Q1: How long is the delivery time？
A: Normally within 7-10days

Q2:What equipment do you build?
A: Specialized in alluvial / placer gold / diamond mining equipment.

Q3: How long is the warranty period？
A:One year

Q4: Do you have a certificate of origin, EU certification, etc.？
A: yes, of course

Q5: How many wheels does it have?
A:There are two and four rounds, according to customer requirements.
