Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant

Applicable Industries : Manufacturing Plant, Energy & Mining

Showroom Location : United States, Italy, Brazil, Pakistan, India, Mexico, Australia

Condition : New

Type : Gravity Separator

Production Capacity : 98%

Place of Origin : zhengzhou China

Brand Name : Sinolion machinery

Voltage : 220V/380V

Weight : 520 KG

Warranty : 1 Year

Marketing Type : Ordinary Product

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Warranty of core components : 6 Months

Core Components : Motor, Pump, Gearbox, Other

Key Selling Points : Easy to Operate

Packaging Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.

Port : Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( as client request)

Supply Ability : 50 Set/Sets per Month gold trommel screening plant

Price : $3,500.00 - $4,500.00/sets

MOQ : 1 unit

Contact Now

Specifications

Trommel screeners

If you need to screen alluvial rock gold by watering and panning. It is better to use this kind of machine to improve productivity. This a good assistant for workers to operate. Our customer will maximize economic benefits from that than lack of this machine. More and more owners of this business area are in favor of or have used this product.
There is a brief introduction below.

Trommel screeners of 10-20 tons per hour


1、Mini trommel screener

We specially produce the trommel screener with capacity 10-20 tons per hour.If our customer don't need large machine, it is necessary to choose our mini trommel screener,which is our hot selling products.

***The mini trommel screen is so portable that one male can hold, pull, and move it.
***The mini trommel screen is very diverse performance, with mesh pole diameter from 5-9 mm , with a sluice box and a discharge plate.
***The mini trommel screen can be connected with centrifuge and shaker table,and some other our products for a complete producing line.

Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
model
GMTS 0519
mesh material
manganese wire weaving
mesh pole diameter
5-9 mm
drum diameter
500 mm
drum length
1900 mm
feed hopper size
800*790 mm
machine size
3000x1000x1800 mm
structurer
feeding hopper, screen drum, chassis, wheel, sluice, transmission device
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant

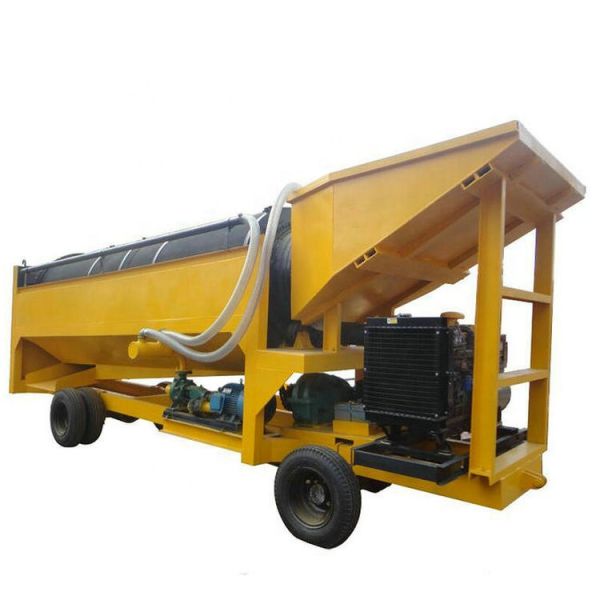

2、Middle size trommel screener

We provide model GMTS 1020 with capacity 10-20 tons per hour, which is larger size than mini trommel screen.It is popular among many customer who need screen the alluvial sand soil about 10 tons per hour.

***The water pump and motor or diesel generator can be installed in the head of the machine, which is convenient for workers to move.
***The drum is rotary by power of chain connected with reducer and motor, which makes drum working sustainable.
***The mini trommel screen is very diverse performance, with mesh pole diameter from 5-9 mm , with a sluice box and a discharge plate.
***Model GMTS 1020 trommel screen can be connected with centrifuge and shaker table,and some other our products for a complete producing line.
model
GMTS 1020
mesh material
manganese wire weaving
mesh pole diameter
5-9 mm
drum diameter
1000 mm
drum length
2000 mm
machine size
3390×1400×2140 mm
input
less than 300 mm
structurer
feeding hopper, screen drum, chassis, wheel, sluice, transmission device
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant

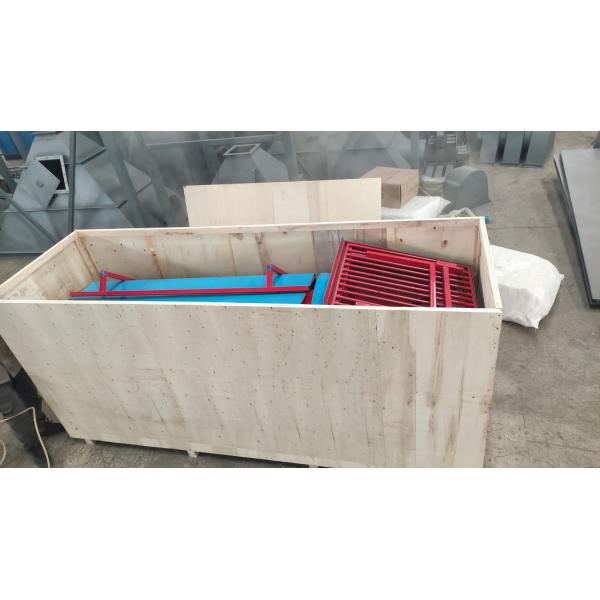

Packing & Delivery
model
GMTS 0519
GMTS 1020
packing size
4 square meter
10 square meter
type of shipping
LCL
LCL
packing
Wooden box
Wooden box
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Customer Visit
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Comany Information
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Energy Mining Gravity Separator for 10-20 Tons Per Hour Portable Gold Processing Plant
Related Products

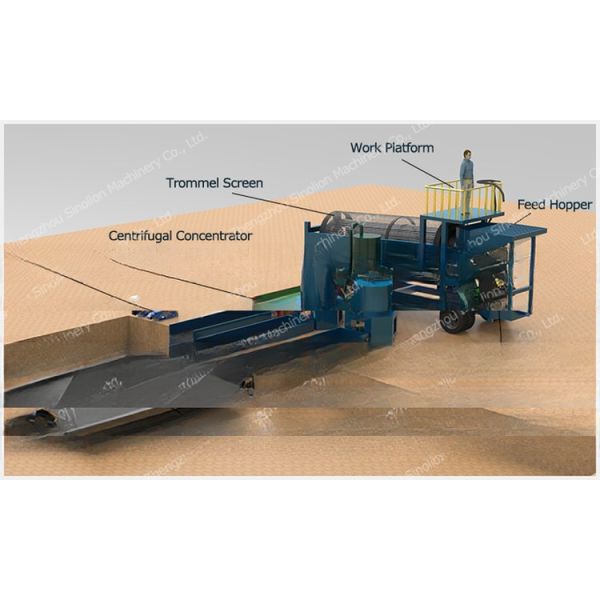

The complete sets

We provide the whole complete sets for trommel screener, sluice box, centrifuge , shaker table and so on, which displays below.
