Applicable Industries : Energy & Mining
Showroom Location : None
Condition : New
Type : Hammer Crusher, diesel engine or electric motor
Application : stone, gold ore, stone, rock, gold ore, clay, pebble, sand, gravel, glass
Motor Type : AC Motor
Capacity(t/h) : 1-280t/h
Place of Origin : Henan, China
Brand Name : Sinolion
Dimension(L*W*H) : As per different model
Weight : 800 KG
Warranty : 1 year
Marketing Type : New Product 2020
Machinery Test Report : Provided
Video outgoing-inspection : Provided
Warranty of core components : 1.5 years
Core Components : Motor
Key Selling Points : Easy to Operate
Product name : High quality small mobile stone hammer crusher machine
Feeding size : 0-350mm
Discharge size : adjustable
Screen grade size : adjustable
Hammer heads material : 40Cr
Wearing parts : hammer head and side plates
Color : yellow, white, red, blue, gray( or as client request)
Certification : ISO9001:2008
Price : $3,500.00/sets >=1 sets
MOQ : 1 unit
Hammer crusher mill descripation:
Hammer crusher also named hummer mill, hammer crushers are applicable for various hard and fragile materials, such as limestone, coal, salt, gypsum, alum, brick and tile, etc. The crushing compressive strength of materials should not be in excess of 150Mpa. Hammer crusher is mainly used in industries such as cement, coal separation, electricity generation, building materials and compound fertilizer, etc. And hammer crusher can crush materials with different sizes into equal particle, which favors the next procedure. The advantages of hammer crusher are reliable mechanical structure, high productivity and favorable applicability.
Hammer crusher has the advantages of simple structure, large crushing ratio and high production efficiency. the grate gap of hammer crusher can be adjusted according to the user's different particle size requirements.

Hummer crusher technical parameters:
| Model | Feed size (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (T) |
| PC400×300 | ≤100 | ≤10 | 5-10 | 11 | 0.8 |
| PC600×400 | ≤120 | ≤15 | 10-25 | 18.5 | 1.5 |
| PC800×600 | ≤120 | ≤15 | 20-25 | 55 | 3.1 |
| PC1000×800 | ≤200 | ≤15 | 20-40 | 90 | 7.9 |
| PC1000×1000 | ≤200 | ≤15 | 30-70 | 132 | 8.66 |
| PC1250×1250 | ≤250 | ≤25 | 50-100 | 185 | 10.5 |
| PC1300×1200 | ≤250 | ≤29 | 60-150 | 240 | 13.6 |
| PC1400×1400 | ≤280 | ≤30 | 120-170 | 280 | 16.2 |
| PC1600×1600 | ≤350 | ≤30 | 200-280 | 450 | 19.6 |



Screen for choice or as request:

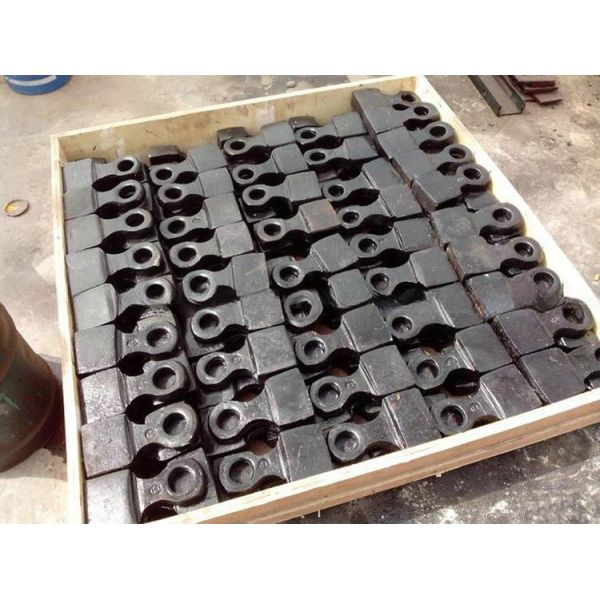

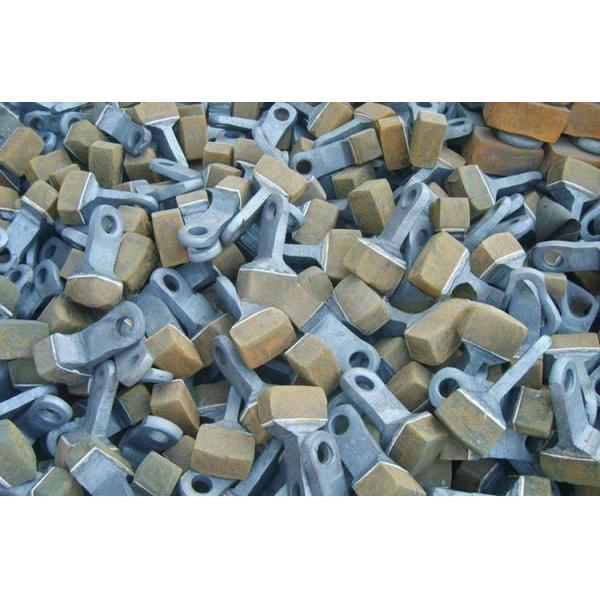

Hummer heads:









Question 1: What’s the delivery time after I pay the deposit ?
Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.
Question 2: Is mineral samples analysis available?
Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.
Question 3: Do you have client in my country?
Answer: Our products have exported to Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc
Question 4: How long of your machine quality guarantee terms ?
Answer: Quality guarantee time is one year(wearing parts excluded).
|
|
