Small Scale 5 Tons Mini Gold Processing Plant for Alluvial Gold Gravity Separation

Name: Small Scale 5 Tons Mini Gold Processing Plant for Alluvial Gold Gravity Separation
Brand: ZHENGZHOU Sinolion
Price: 4 USD

Quality Small Scale 5 Tons Mini Gold Processing Plant for Alluvial Gold Gravity Separation for sale

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction works , Energy & Mining, Advertising Company, Other

Showroom Location : Italy, Germany, Viet Nam, Peru, India, Kenya

Condition : New

Type : Gravity Separator

Production Capacity : 5-10TPH

Place of Origin : Henan, China

Brand Name : ZHENGZHOU Sinolion

Voltage : 380V

Dimension(L*W*H) : 3000*800*1500mm

Weight : 600 KG

Warranty : 1 Year

Marketing Type : Hot Product 2024

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Pump, Gear, Pressure vessel, Engine, Other

Key Selling Points : Easy to Operate

Application : Alluvial Gold Washing

Color : Customized Making

Feeding size : 300mm

After-sales Service Provided : Video Technical Support

Material : Steel

Processed materials : Alluvial Gold Sand Gold

Price : $4,080.00/sets

MOQ : 1 unit

Contact Now

Product Description

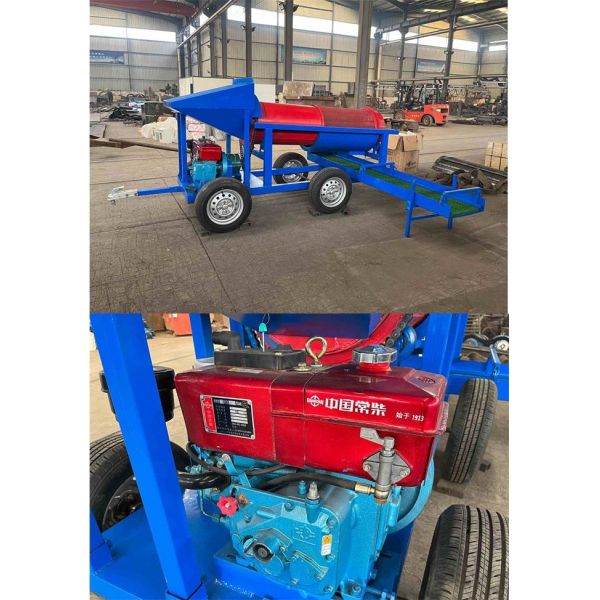

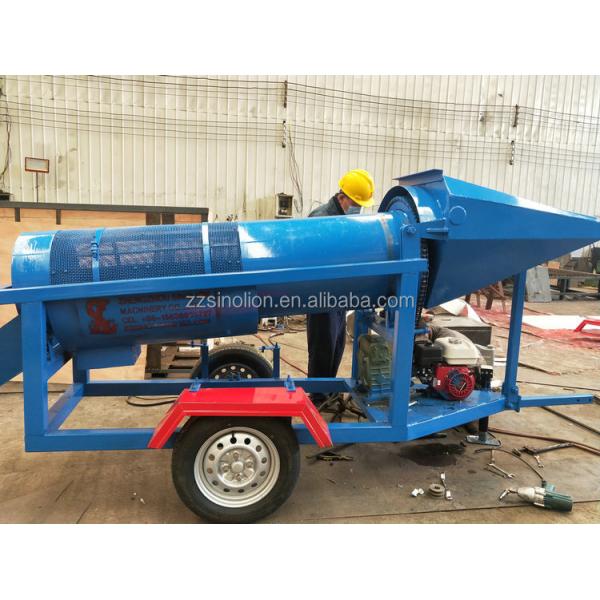

Gold Mobile Trommel Screen 0519 can process 5-10 tons of materials per hour, with a recovery rate of up to 92%. 0519 drum screen is suitable for placer gold and alluvial gold. It is a movable platform with a traction on the front side of the traction, which can be well fixed and moved on the sand. It is mianly consist of motor, drum device, frame, tries, grille, and inlet and outlet. We can also match a HONDA gasoline engine or a diesel engine.

Small Scale 5 Tons Mini Gold Processing Plant for Alluvial Gold Gravity Separation

The gold washing trommel 0519 can be washing and screening. When GMTS 0519 is running, it is powered by the motor, and the materials enters from the feed inlet. Some large pieces of materials are blocked outside the grille, and small pieces of materials enter the drum to start screening. Since the density and specific gravity of gold are different, so during the washing and screening process, heavy metals containing gold will be screened out from the discharge port.The trommel screen is equipped with a engine, which has a long service life and does not need to worry about outdoor power generation. It is economical, durable, safe and powerful.

Drum Device

The cylinder screen is a single-layer structure, which is used when the materials do not contain bulk materials. The advantage of the single-layer structure is that the entire cylinder is lightweight, which can reduce the weight and energy consumption of the entire equipment.

The screen adopts high manganese steel woven screen, which has high efficiency and long service life. The screen is easy to wash and will not block. It is have a breaking knife inside the trommel screen, which can break some hard stones wrapped in gold.

Gold dust separated

Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collecting.

Hopper grate

The grille can clog large pieces of materials outside, and smaller placer gold and alluvial gold enter the hopper for screening, which is beneficial to improving the efficiency of the screening hopper.

Product Details

Specification

Model	GMTS0519
Drum Diameter	500mm
Drum Length	1910mm
Capacity	5-10 tons/hour
Power	1.5kw
Motor	Diesel engine HONDA gasoline engine Electric motor
sluice box	1000*6000mm Angle adjustable 2-8°
Grizzly	Steel bard diameter 20mm Bar spacing 50mm Input hopper: 0.5m³
Weight	600kg

Packing & Delivery

Certifications

Company Profile

FAQ

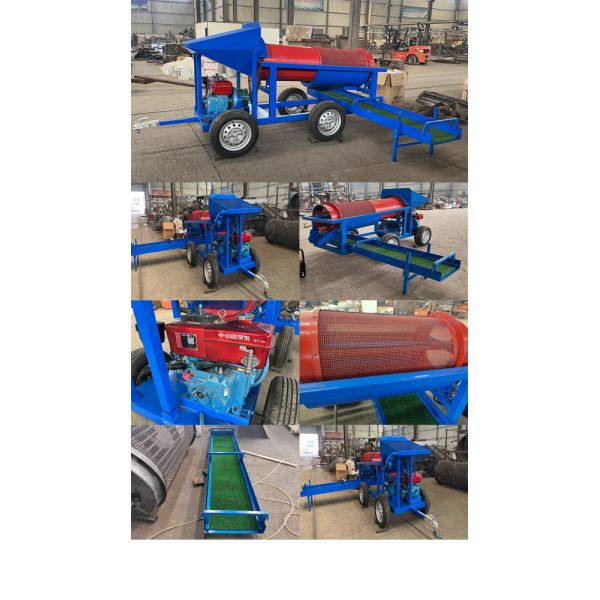

Small Scale 5 Tons Mini Gold Processing Plant for Alluvial Gold Gravity Separation Images
