Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Construction works , Energy & Mining, Advertising Company

Showroom Location : Canada, United Kingdom, United States, Germany

Condition : New

Type : Gravity Separator, Gravity Separation

Production Capacity : 0.5-1.2 tons per hour

Place of Origin : Henan, China

Brand Name : ZHENGZHOU Sinolion

Voltage : 380V/415V/440V( as client request)

Dimension(L*W*H) : 5630*1850*900mm

Weight : 650 KG

Warranty : 1 Year

Marketing Type : New Product 2023

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Pump, Gear, Engine, Other

Key Selling Points : Multifunctional

Application : gold, chormite, tungsten ore, tin, tantalum ore, niobium mine

Product name : Shaking Table

After-sales Service Provided : Service Machinery Overseas

Usage : Mining Concentration

Name : Gold Mining Equipment Shaking Table

Color : Clients' Request

Processed materials : gold

Capacity : 0.5-1.2 tons per hour

Price : $1,400.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Product Description
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops

LY model Shaking table for glod

Shaking table is one of the main equipments of gravity beneficiation in the gold processing equipment, mainly used in the separation of tungsten, tin, tantalum, niobium, iron, manganese, chromium, titanium, bismuth, lead, gold and other rare metals and precious metal ores , can also be used in coal mines. It can be used i n different operations such as roughing, beneficiation, sweeping, etc., and separate coarse sand (2-0.5mm), fine sand (0.5-0.074mm), ore slime (-0.074) and other different particle sizes. You can select it according to your needs.
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Working principle
The mineral processing process of the shaking table is carried out on the inclined bed surface with rebound strips. The ore particles are fed from the ore feed chute, and the horizontal flushing water is supplied from the water supply tank. When the ore particles are under gravity and the force of the transverse flow water, the bed surface is under the action of inertia and friction generated by reciprocating asymmetric motion, the materials are layered according to specific gravity and particle size.
Therefore, ore particles with different specific gravity and particle size gradually flow down in a fan shape along their respective directions of movement, and are discharged from different areas on the concentrate end and tailings side respectively, and are finally divided into concentrate, medium ore and tailings.
Product Details
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Specification
Specifications
LY型
Bed surface size(mm)
Length*feed end width*concentrate end ore
2100×1050×850
selection area(㎡)
2
Feeding particle size(mm)
coarse sand
2-0.5
fine sand
0.5-0.074
slime
0.074-0.037
Feeding concentration（%）
10～30
Handling Capacity（t/h）
coarse sand
0.4-0.8
coarse sand
0.2-0.5
slime
0.1-0.2
Water Consumption（t/h）
0.2～1
Stroke（mm）
12～28
Stroke times（times/min）
250～450
Corss slope（degrees）
0°～10°
Electric Motor
model
Y90L-4
power（kw）
1.1
rotating speed（r/min）
1400
V-belt（mm）
B-2007
Dimensions(mm) L*W*H
3040×1050×1020
Weight（kg）
350
Packing & Delivery
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops

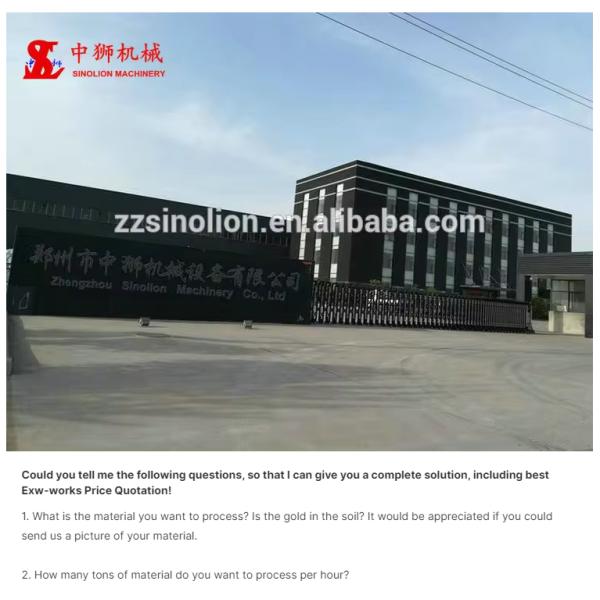

Company Profile
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Contact us
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Portable Gold Separation Shaking Table for Mining Concentration in Building Material Shops
Sincerely welcome to send your inquiry, you can get best quotation and professional service!
