Raw Material Drying with Multi-Layer Belt Drying Machine Industrial Mesh Belt Dryer

Name: Raw Material Drying with MultiLayer Belt Drying Machine Industrial Mesh Belt Dryer
Brand: sinolion
Price: 120 USD

Quality Raw Material Drying with Multi-Layer Belt Drying Machine Industrial Mesh Belt Dryer for sale

Type : Drying Oven

Application : machinery industry, Dry coal charcoal coke carbon black iron fluorite

Condition : New

Place of Origin : China

Brand Name : sinolion

Voltage : 220V 380V 450V 600V

Power : 5.5-37kw

Dimension(L*W*H) : Acoording to coal briquette mesh belt dryer model

Key Selling Points : High efficiency

Warranty : 1 Year

Weight (KG) : 14000

Applicable Industries : Energy & Mining

Showroom Location : None

Marketing Type : New Product 2023

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Gear, Motor

Product name : charcoal briquette mesh belt dryer

Heating source : steam, electricity, far infrared, oil, gas, wood pellet,coal fuel

Material : stainless steel, carbon steel, wire mesh, steel plate, chain plate

length of dryer : 8m-36m

Dryer parts : head, tail, middle section, motor, reducer, temperature controller

Dry material shape : coal briquette, charcoal briquette

Function : Dry and reduce raw material moisture

Color : As you required

Weight : Depend on coal briquette mesh belt dryer model

Price : $120,000.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Products Description

Large capacity 10-15TPH charcoal briquette chain plate dryer mesh belt dryer price

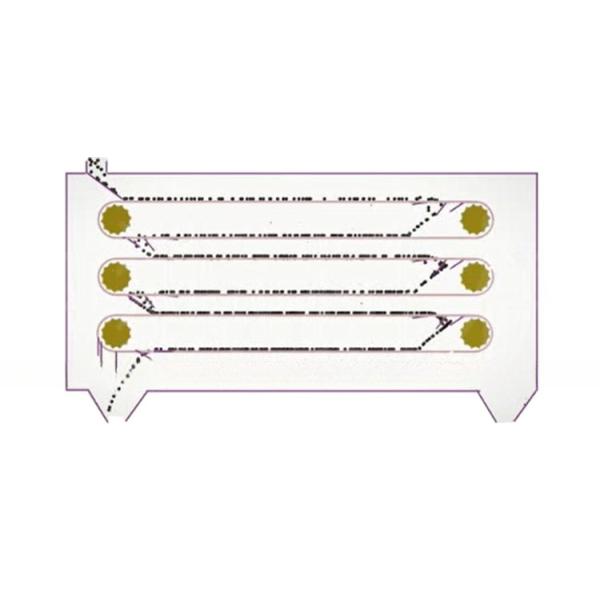

Chain Plate dryer, named plate dryer also, is redesigned based on traditional mesh belt dryer and conveyor dryer by SINOLION MACHINERY, professional briquette machine and briquettes dryer manufacturer. Chain plate dryer is are widely welcomed by briquettes plant after successful designing. We replace the traditional mesh belt by new designing steel plate which driven by the motor through the chain connected with plate. Most importantly, we make full use the space between the center of each layer, as following drawing:

Raw Material Drying with Multi-Layer Belt Drying Machine Industrial Mesh Belt Dryer

Applicable: coal briquettes, charcoal briquettes, mineral briquettes and other industry briquettes need to dry

Working Principle

Final briquettes, from briquettes press machine with moisture content around 25%-40%, are feed into chain plate dryer evenly from the feeding top assembled at the top of dryer. The briquettes will follow the chain plate moving until to the end of first layer, following the turning around of chain plate, the briquettes will fall down to the center of first layer, moving with the chain plate until to the beginning of first layer and then fall down to the second layer top following the chain plate turning around. The briquettes will move by the same way until to the end of dryer and discharge from the discharge port! During the moving with chain plate, the hot air pumped from furnace will be pumped into the dryer through two side of dryer by strong centrifugal fan to the bottom of dryer, the hot air will pass the moving briquettes and taking the moisture out until the briquettes moisture upto the request date. Usually, last layer will be assembled the chain plate without hole to collect the dust generated during the process and conveyor out.

Product Details

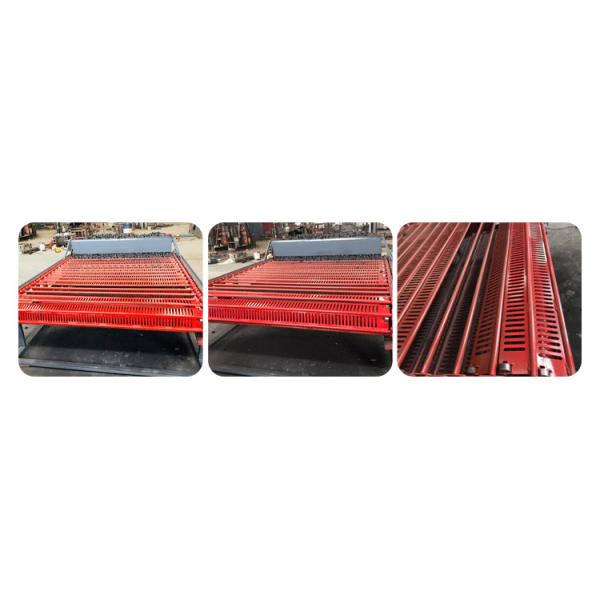

Conveyor chain plate making show

Final briquettes

How briquette move inside chain plate briquette dryer

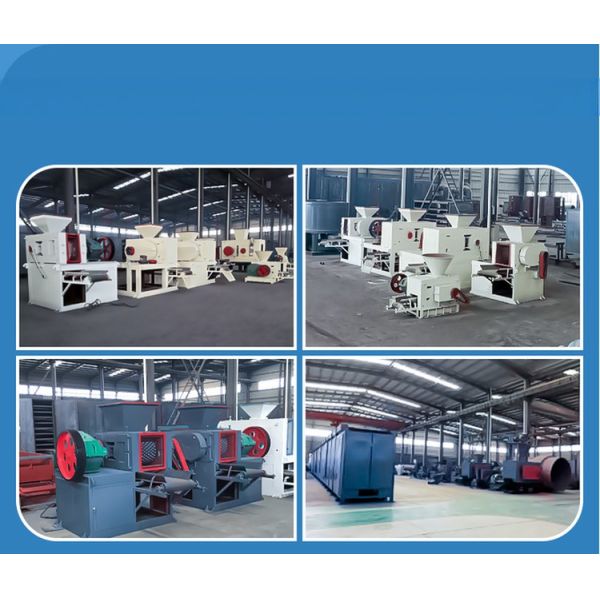

Test machine in workshop

Packing & Delivery

Case

More models

Customer Visit

FAQ

Q :What kind of material can be dried by chain plate dryer? A : Nearly all kinds of platy strip and granular material can be dried by chain plate dryer such as wood chips, coal briquettes, charcoal briquettes, iron pellets and other mineral briquettes / pellet, etc. Q :What kind of fuel can be used with the chain plate dryer? A :Diesel, natural gas, coal, wood chips and other kind of fuel are OK. Q :What's the drying temperature of the chain plate dryer? A :Drying temperature of the mesh belt dryer is adjustable. It varies from 70 to 350 °C. Q :How long will the briquettes stay in the chain plate dryer? A :Normally the drying time will be about 50-300 minutes. Q :Is the chain plate speed adjustable? A : Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
