Installation Guidance Provided Continuous Mesh Belt Drying Equipment for Briquettes

Name: Installation Guidance Provided Continuous Mesh Belt Drying Equipment for Briquettes
Brand: Sinolion mesh belt dryer
Price: 120 USD

Quality Installation Guidance Provided Continuous Mesh Belt Drying Equipment for Briquettes for sale

Type : Drying Oven

Application : briquettes processing, briquette dryer

Condition : New

Place of Origin : Henan, China

Brand Name : Sinolion mesh belt dryer

Voltage : 220-440V

Power : 5.5kw

Dimension(L*W*H) : Refer to the specific model

Key Selling Points : Automatic

Warranty : 12 Months

Weight (KG) : 1800

Applicable Industries : Manufacturing Plant, Energy & Mining

Showroom Location : None

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Gear, Motor, Gearbox

After-sales Service Provided : Engineers available to service machinery overseas

Product name : briquette mesh belt dryer machine

Heating source : Steam,electricity, gas oil, etc

Material : Stainless /carbon Steel

Installation : Engineer's Guidance

Usage : briquette dryer machine

Name : briquette dryer

mesh belt width : 0.6-2m

mesh belt layer : 1-8 layer

Price : $120,000.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Product Introduction

Continuous Charcoal Coal Briquettes Mesh Belt Drying Equipment Dryer for different material briquettes

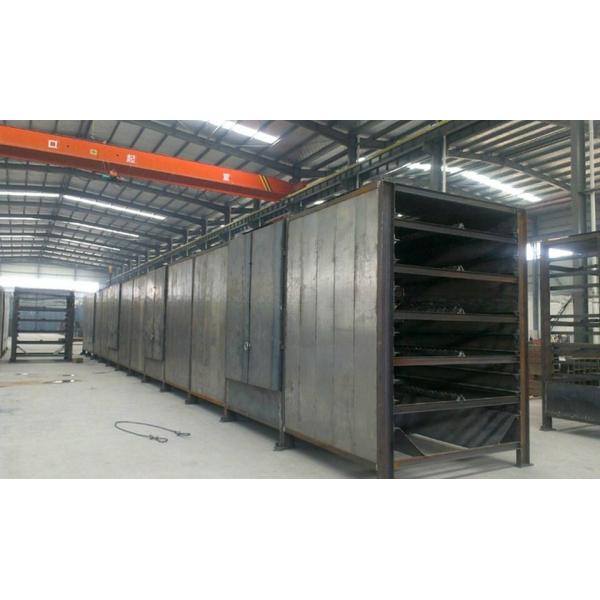

The riquette mesh belt dryer also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette mesh belt dryer can be used with other supporting machine and also can be used alone. Especially it is the ideal dry equipment of various kinds of materials briquette production line.

Installation Guidance Provided Continuous Mesh Belt Drying Equipment for Briquettes

Features of briquette dryer mesh belt dryer machine

1. Small space to take. 2. Low investment. 3. High efficiency.
4. Large output and high evaporation strength
5. Standardized production, the number of segments can be increased according to output and work shop

Product Parameters

Model			DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10	DW-2-20
Quantity of unit			4	5	4	5	4	5	10
Width of belt(m)			1.2			1.6			2
Length of dry section(m)			8	10	8	10	8	10	20
Operation temperature(oC)			50-140
Steam pressure(MPa)			0.2-0.8
Steam consumption (kg/h)			120-300	150-375	150-400	180-500	180-500	225-600	450-1200
Drying time (h)			0.2-1.2	1.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.5-3
Drying capacity(kg water/h)			60-160	80-200	85-220	100-260	100-260	120-300	240-600
Total power (kw)			11.4	13.6	14.6	18.7	19.7	24.5	51
Overall size	L(m)	9.56	11.56	9.56	11.56	9.56	11.56	21.56
		W(m)	1.49	1.49	1.9	1.9	2.32	2.32	2.32
		H(m)	2.3	2.3	2.4	2.4	2.5	2.5	2.5

Product Details Show

Why Choose Us

About sinolion company

1,Our Company professional research and supply briquette mesh belt dryer machine many years, we have lots experiences to help our clients choose workable mesh belt dryer to meet client's demand.

Mesh belt dryer technology

2, More than five engineers, professional research dryer technology, improving the dryer production process, to achieve customer satisfaction.

Service

3, Professional sales team to provide pre-sale service, let customers fully understand briuqette mesh belt dryer, specialist is responsible for the after-sale service, solve practical problems when mesh belt dryer working.

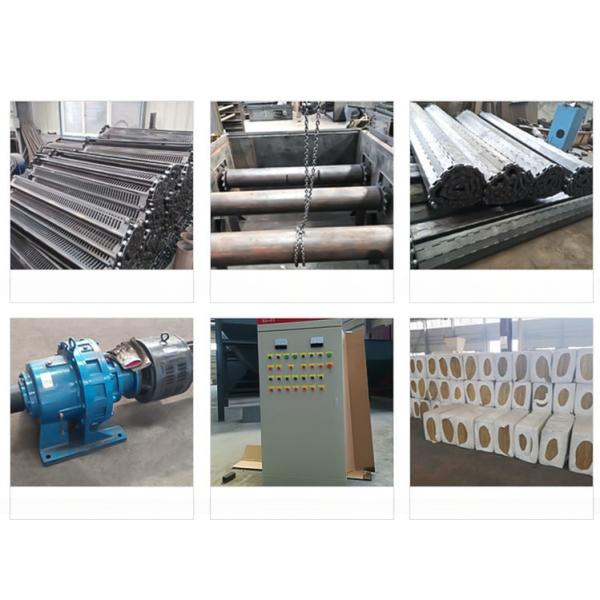

Product Processing

Steel belt making process

The belt material of briquette mesh belt dryer can be carbon stell or Stainless steel. the material depands on dry material. We will use carbon steel if dry material is coal briquette, charcoal briquette, carbon black briquette and other mineral briquette.

When the briquette mesh belt dryer dry fruits, vegetables, medicinal herbs, we must use stainless steel belt.

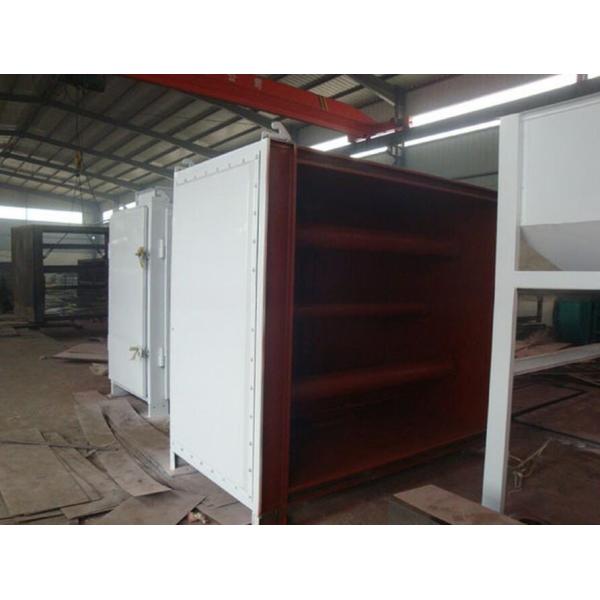

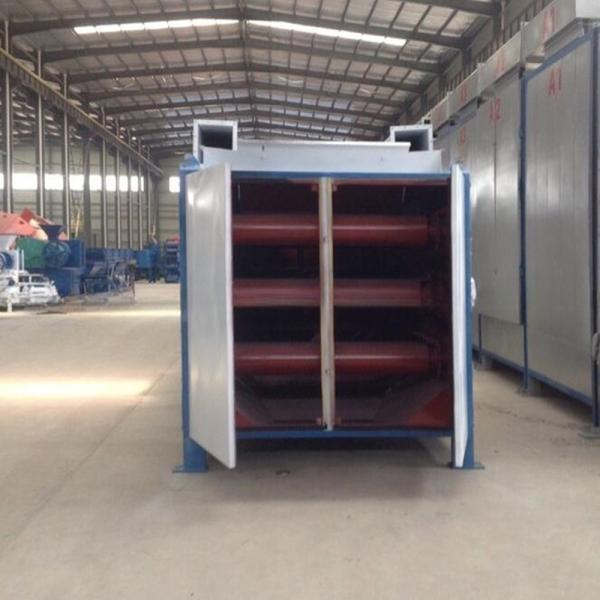

Middle section mading of briuqette mesh belt dryer

1.The shaft wall of briquette mesh belt dryer including outside, inside, channel steel. all 3 layers is 3mm high carbon steel.
2.Upper of the dryer, there are 2 layers 2mm high carbon steel.
3. Bottom of the dryer, there is 1 layer 3mm high carbon steel.
4. The frame of the middle section is 3mm high carbon steel.
5. U-channel steel is 3mm thickness high carbon steel.
The material also can use stainless steel when dry fruits, vegetables, medicinal herbs etc.

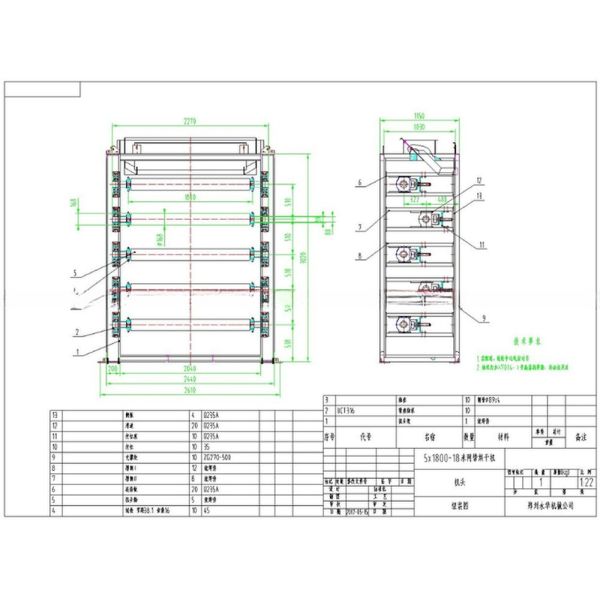

Mesh belt Detail

1,Shaft diameter 80mm

2, Sprocket diameter pitch=200mm

3,Mesh belt with chain use SUS 304

4, Bearing No. UCT316

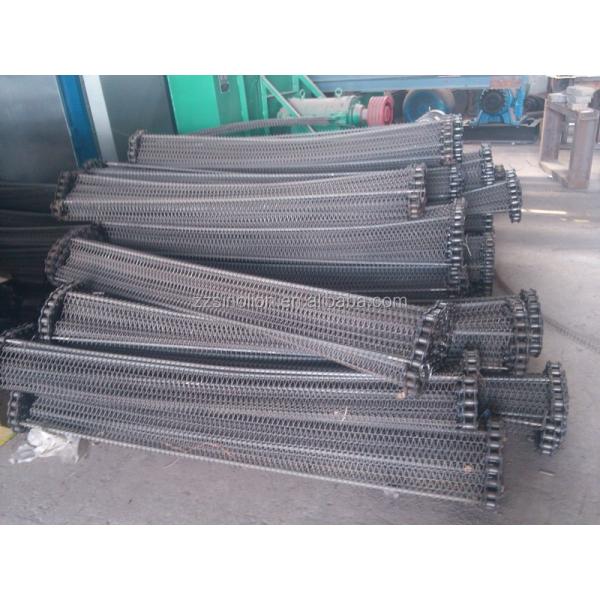

Mesh belt parameter

1,Spring length100mm;

inner holeΦ82mm; thicknessΦ16
2.Mesh wire’s thickness Φ3mm
3. Wire feed diameter Φ3mm

Bearing of mesh belt dryer

Bearing No.according to belt layer.

1 layer mesh belt dryer, bearing 4 sets

Packing & Delivery

Briquette Mesh belt dryer packing

The middle dry sevtion of briquette mesh belt dryer is 2 meters , so it is very easy to loading them into containers. the briquette mesh belt dryer head and tail is 2.5m, so the complete briquette mesh belt dryer can be loaded in containers separately, the mesh belt will rolled and delivery together with briquette mesh belt dryer. other parts like dryer motore, fan, Electric control cabinet will packing in wood box or steel box.
