6-Layer Platform Dryer Advanced Drying Solution for Charcoal Briquette Production

Name: 6Layer Platform Dryer Advanced Drying Solution for Charcoal Briquette Production
Brand: Sinolion mesh belt dryer
Price: 120 USD

Quality 6-Layer Platform Dryer Advanced Drying Solution for Charcoal Briquette Production for sale

Type : Drying Oven

Application : briquettes processing, briquette dryer

Condition : New

Place of Origin : China

Brand Name : Sinolion mesh belt dryer

Voltage : 220-440V

Power : 5.5kw

Dimension(L*W*H) : Refer to the specific model

Key Selling Points : Automatic

Warranty : 12 Months

Weight (KG) : 1000

Applicable Industries : Manufacturing Plant, Energy & Mining

Showroom Location : None

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Gear, Motor, Gearbox

Product name : charcoal briquette drying oven used for briquette production line

Keywords : charcoal briquette drying oven

Heating source : Steam,electricity, gas oil, etc

Material : Stainless /carbon Steel

Installation : Engineer's Guidance

Usage : briquette dryer machine

Name : briquette dryer

mesh belt width : 0.6-2m

mesh belt layer : 1-8 layer

Price : $120,000.00/sets >=1 sets

MOQ : 1 unit

Contact Now

6 layers platform dryer charcoal briquette drying oven used for briquette production line

Production description

6-Layer Platform Dryer Advanced Drying Solution for Charcoal Briquette Production

The riquette mesh belt dryer also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette mesh belt dryer can be used with other supporting machine and also can be used alone. Especially it is the ideal dry equipment of various kinds of materials briquette production line.

Working principle

Mesh belt type drying machine main principle is the material evenly tiled on the mesh belt, is driven by the drive device in the dryer moving back and forth, hot air in materials and the cross flow, water vapour from the wet discharging hole in discharge, so as to achieve the purpose of drying. Network with 12-60 to wire mesh belt, the body length by a combination of the standard section, in order to save space, the drying mechanism into multi-layer, common has two room three and two-room five layers, length 6-40m, effective width 0.6-3.0m.

The material has the nose to enter slowly through the drying for drying, net belt line speed depending on the type of material and water content. Air flow to the use of negative pressure, porous air, to ensure the effective drying area, wind speed distribution uniformity, improve the drying effect. In order to get the best drying effect and the appropriate output, the water content of the material, the line speed of the net belt, the air volume and the air temperature must be the appropriate, reasonable and organic combination.

Technical parameters

Model		DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10	DW-2-20
Quantity of unit		4	5	4	5	4	5	10
Width of belt(m)		1.2		1.6		2
Length of dry section(m)		8	10	8	10	8	10	20
Operation temperature(oC)		50-140
Steam pressure(MPa)		0.2-0.8
Steam consumption (kg/h)		120-300	150-375	150-400	180-500	180-500	225-600	450-1200
Drying time (h)		0.2-1.2	1.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.5-3
Drying capacity(kg water/h)		60-160	80-200	85-220	100-260	100-260	120-300	240-600
Total power (kw)		11.4	13.6	14.6	18.7	19.7	24.5	51
Overall size	L(m)	9.56	11.56	9.56	11.56	9.56	11.56	21.56
	W(m)	1.49	1.49	1.9	1.9	2.32	2.32	2.32
	H(m)	2.3	2.3	2.4	2.4	2.5	2.5	2.5

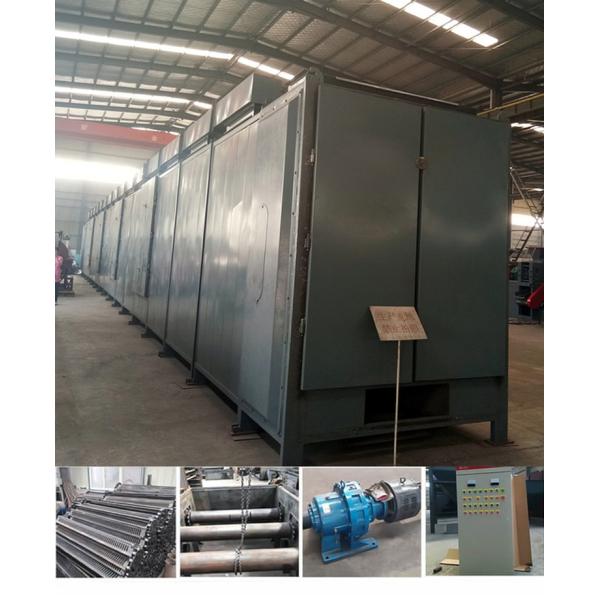

6-Layer Platform Dryer Advanced Drying Solution for Charcoal Briquette Production

Packaging & Shipping

6-Layer Platform Dryer Advanced Drying Solution for Charcoal Briquette Production

Case

6-Layer Platform Dryer Advanced Drying Solution for Charcoal Briquette Production

6-Layer Platform Dryer Advanced Drying Solution for Charcoal Briquette Production Images
