Mobile Trommel Drum Sieve Screen Separation Machine Conveyor Angle 25 Degrees 2200 KG

Name: Mobile Trommel Drum Sieve Screen Separation Machine Conveyor Angle 25 Degrees 2200 KG
Brand: sinolion
Price: 24 USD

Quality Mobile Trommel Drum Sieve Screen Separation Machine Conveyor Angle 25 Degrees 2200 KG for sale

Applicable Industries : Building Material Shops, Manufacturing Plant, Other

Showroom Location : Canada, United Kingdom, United States, Germany, Brazil, Mexico, Russia, Australia

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Engine, Motor, Pump

Condition : New

Type : Circular

Application : Ore, earth, sand, gravel, compost, wood chips, construction waste

Place of Origin : Henan, China

Brand Name : sinolion

Voltage : 380v/415v/440v

Dimension(L*W*H) : depends on models

Weight : 2200 KG

Warranty : 1 Year

Product name : Mobile trommel drum sieve screen separation machine for sale

Screen material : steel bar, steel plate punch hole, steel wire woven, stainless steel

Conveyor Angle : 25 degrees

Screen size : 20*20mm

Discharge size : as request

Screen thickness : 4mm

Spare parts supplying : Lifelong Provide

Hopper Capacity : 6.3 yd³ (4.8 m3)

Hopper Width : 5' 6" (170 cm)

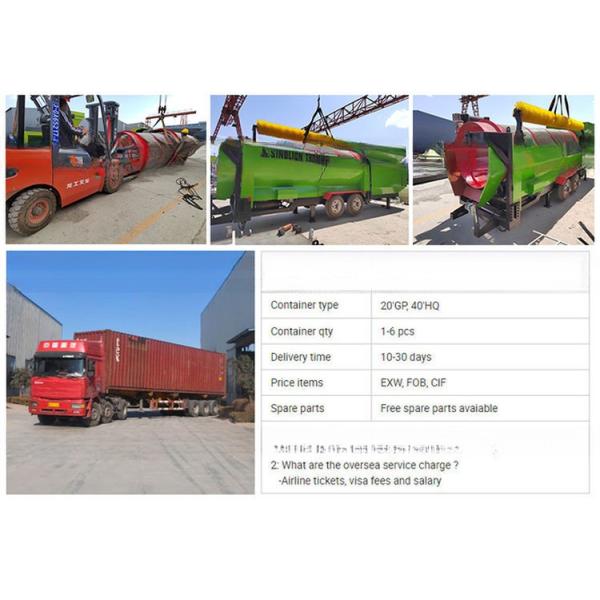

Packaging Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case or free fumigation wooden cases, depends on machine weight.
Motor is packed

Port : Qingdao shanghai Tianjin, Lianyungang,Guangzhou( as client request)

Supply Ability : 40 Set/Sets per Month

Price : $24,610.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Product Overview

Mobile trommel drum sieve screen separation machine for sale

This wheeled mobile trommel screen systems’ high flexibility and the comprehensive range of products, from the smallest screening machine with less than 1.8 tons to the largest with up to 20 tons, enable the company to serve customers from the gardening,landscaping, recycling, timber, civil engineering, glass and even gravel pits and quarries. This wheeled mobile machine are not only used in the processing of earth materials, but also in more specific fields of application, such as the extraction of recyclable fractions of plastics, foils and wood chips and in the processing of compost, milled material, building rubble, stones, gravel, as well as glass or even in the recycling of sandbags.

FEATURES AT A GLANCE

Mobile Trommel Drum Sieve Screen Separation Machine Conveyor Angle 25 Degrees 2200 KG

Scope of application

Like all machines in the GTS series, the GTS 1540 not picky about sifting out waste and raw materials regards. It is equally suitable for compost, soil,light rubble, wood, biomass, sand and gravel etc.
Screening materials: earth, sand, gravel, compost, wood chips, construction waste, recycling material, slag, crushed stone and
stone in grain sizes from 2 mm to 80 mm

Advantages

·Quick change system for the sieve insert, optionally drum or star screen insert
·Large 2 m³ feed hopper with a loading height of just 1.8 m ·2.5 m long discharge belts with 1.75 m delivery height
·Electronic load control for a perfect screening result optimal throughput
·Perfect mobility thanks to compact transport dimensions

PRODUCT SPECIFICATIONS

MTS1550 Specifications
Dimensions		Trommel
A Operating Length	28' 2" (860 cm)	Trommel Diameter	4' 10" (150 cm)
B Operating Height	9' 35" (285.5cm)	Screening Area	202.8ft2 (18.84 m2)
C Travel Length	11' 65" (355 cm)	1＃Fines Conveyor
D Travel Height	8' 36" (255 cm)	Conveyor Length	11'5" (350cm)
E Travel Width	5' 6" (170cm)	Conveyor Width	11' 3" (100cm)
F Trommel Length	17' 8" (540 cm)	Conveyor Angle	17.85 degrees
G Hopper Length	9' 10" (300 cm)	2＃Fines Conveyor
H Fines Conveyor Height	5' 3" (160 cm)	Conveyor Length	11'5" (350cm)
Weight		Conveyor Width	11' 3" (100cm)
Machine Weight Approx		Conveyor Angle	17.85 degrees
Power train		Screen (Standard)
Horsepower	40hp (30 kW)	Screen size	20*20mm
Fuel Tank Capacity	13.2 USAgal (50 L)	Screen thickness	4mm
Feed System		Production
Hopper Capacity	6.3 yd³ (4.8 m3)	Screening Performance	78 yd³ (90 m³) per hour
Hopper Width	5' 6" (170 cm)	Actual output may vary due to moisture content, material density, material size, and support equipment) Specifications subject to change without notice

Successful Project

Company Profile

FAQ

1. What's the delivery time after I pay the deposit ?
In your first inquiry, please let us know your information and requirements, we will give you guidance for choosing the right
machine.

2. Is mineral samples analysis available?
Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable
solution and equipment selection.

3. What's the delivery time after I pay the deposit?
We will clear delivery time in slaes contract, Single movable drum sieve often deliveried within 10-15 working days after receipt of the pre-payment. Complete production line will delivery within 25-40 working days after receipt of the pre-payment.

4. How long of your machine quality guarantee terms ?
Quality guarantee time is one year(wearing parts excluded).

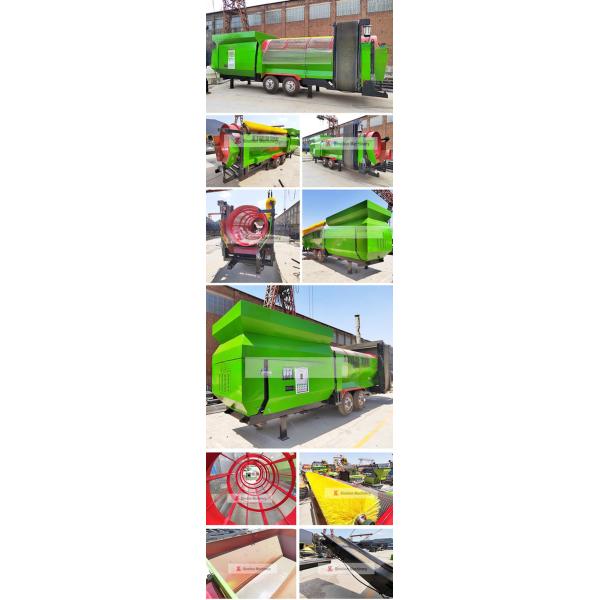

Mobile Trommel Drum Sieve Screen Separation Machine Conveyor Angle 25 Degrees 2200 KG Images
