Applicable Industries : Energy & Mining
Showroom Location : None
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Marketing Type : New Product 2020
Warranty of core components : 2 years
Core Components : Gearbox, Motor
Condition : New
Type : Other
Application : Other, glass, mulch, organics, bark, MSW, plaster board
Place of Origin : Henan, China
Brand Name : Sinolion
Voltage : as client request
Dimension(L*W*H) : As per different model
Weight : 2200 KG
Warranty : 24 months
Product name : New design rotating trommel screen for munipal solid waste machine
Screen material : steel bar, steel plate, manganese steel wire woven, stainless steel
Power : 3-45KW
Dimension : 5600x2015x2010mm
Capacity : 1-200 tons per hour
Feeding size : less than 300mm
Discharge size : less than 6mm or as request
Keyword : rotating trommel screen
Name : munipal solid waste machine
Price : $1,500.00/sets >=1 sets
MOQ : 1 unit
Due to the turning and rolling of the material in the screen drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. GTS series shaftless trommel screen machine mainly consists of motor, gearbox, screen drum, frame, sealing cover, inlet and outlet. The screen drum is mounted obliquely on the frame. The motor is coupled to the drum unit via a coupling through a reducer to drive the screen drum unit to rotate about its axis. After the material enters the screen drum, due to the tilting and rotation of drum screen, the material on the screen surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen, and the unqualified material (the product on the sieve) ) is discharged through the end of the screen drum.


Application:munlcpal solid waste,construction waste,stone,compost,wood chips,sawdust,soil,coal,river sand,refractory materials,chemiacal,etc
Technical parameter of shaftless trommel screen
| Model | Capacity (t/h) | Motor (kw) | Drum size (mm) | Feed Size (mm) | Overall size (mm) | Weight (KG) |
| GTS-1015 | 5-20 | 3 | 1000×1500 | less than 200 mm | 2600×1400×1700 | 2200 |
| GTS-1020 | 10-30 | 4 | 1000×2000 | less than 200 mm | 3400×1400×2200 | 2800 |
| GTS-1225 | 20-80 | 5.5 | 1200×2500 | less than 200 mm | 4200×1500×2680 | 4200 |
| GTS-1530 | 30-100 | 7.5 | 1500×3000 | less than 200 mm | 4500×1900×2820 | 5100 |
| GTS-1545 | 50-120 | 11 | 1500×4500 | less than 200 mm | 6000×1900×3080 | 6000 |
| GTS-1848 | 80-150 | 15 | 1800×4800 | less than 200 mm | 6500×2350×4000 | 7500 |
| GTS-2055 | 120-250 | 22 | 2000×5500 | less than 200 mm | 7500×2350×4800 | 9600 |
| GTS-2265 | 200-350 | 30 | 2200×6500 | less than 200 mm | 8500×2750×5000 | 12800 |












|
|

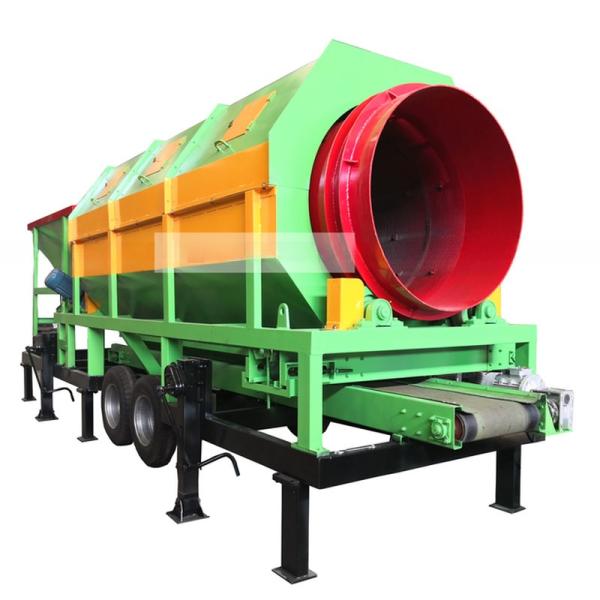

Voltage-Adjustable Municipal Solid Waste Trommel Screen with Customizable Capacity Images |
