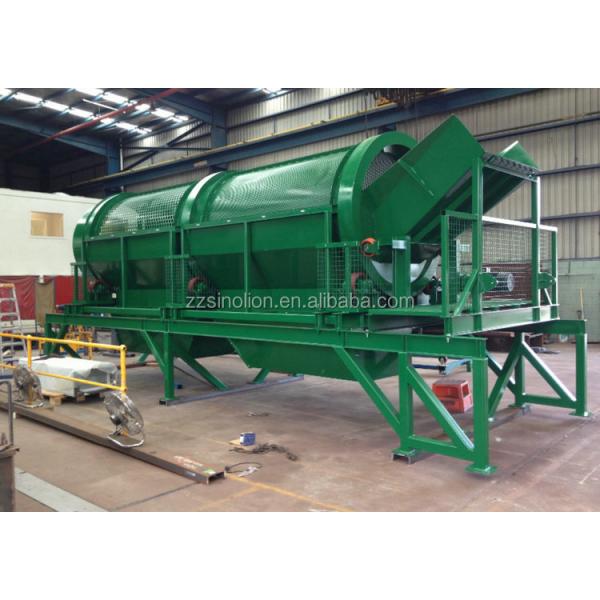

Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : Canada, United Kingdom, United States, Germany, Brazil, Mexico, Russia, None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Gearbox, Motor

Condition : New

Type : compost trommel screener

Application : topsoil, compost, solid, municipal soild waste, glass, mulch, organics, bark, MSW, plaster board

Place of Origin : Henan, China

Brand Name : Sinolion

Voltage : 380V/415V/440V( as client request)

Dimension(L*W*H) : As per different model

Weight : 2200 KG

Warranty : 24 months excluding spare parts

Model : municipal solid waste drum screen

Screen material : steel bar, steel plate, manganese steel wire woven, stainless steel

Power : 3-45KW

Dimension : depends on model

Installation : supply manual to guide user

Capacity : 1-200 tons per hour

Feeding size : less than 300mm

Discharge size : less than 6mm or as request

Price : $1,500.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Product Description
Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting LineAdvanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting LineAdvanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting LineAdvanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line
Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line
MSW trommel screen recycling waste:
The system can consist of the following modules:

1 - Feeder system,

2 - Preliminary Sorting (glass, oversized etc. - manual),

3 - Fe - separation,

4 - Sorting (PET, paper, cardboard, film, aluminium etc.)

5 - Baling press,

6 - Container and belt conveyors

The plant can be designed and constructed for different types of waste and capacity. Upgrade for additional functions, baling press and so on possible on request.

Our recycling sorting equipment and recycling machines have the keys to success; high volume output, high purity sorting and intelligent motor control systems available. We provide various recycling sorting equipment for all types of material recovery facilities, from the tipping floor to the bale storage area and everything.

Zhengzhou Sinolion machines may be used independently as simple screening systems. or with the addition of more advanced crushing, sorting and blowing machines, can from complete recycling system to produce aggregates.

Heavy duty trommel screen recycling waste specifications:

Model Capacity Power

Screen

Diameter

Screen

Length

Discharge

Size

Input

Size

 Dimension
(L×W×H)		 Weight
(t/h) (kw) (mm) (mm) (mm) (mm) (mm) (Kg)
GTS1015 50 3.0 1000 1500 0~100 ≤300 2600×1400×1700 2200
GTS1020 100 4.0 1000 2000 0~100 ≤300 3390×1400×2140 2800
GTS1225 160 5.5 1200 2500 0~100 ≤300 4146×1600×2680 4200
GTS1530 250 7.5 1500 3000 0~100 ≤300 4460×1900×2820 5100
GTS1545 350 11 1500 4500 0~100 ≤400 5960×1900×3080 6000
GTS1848 450 15 1800 4800 0~100 ≤400 6500×2350×4000 7500
GTS2055 600 22 2000 5500 0~100 ≤400 7500×2550×4800 9600
GTS2265 800 30 2000 6500 0~100 ≤400 8500×2750×5000 12800

Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting LineAdvanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line

Working site

Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting LineAdvanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line

Packaging & Shipping

Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line

Our Services

Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line

Company Information

Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting LineAdvanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting LineAdvanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line
Advanced Heavy Duty Construction Municipal Solid Waste Drum Screen for Garbage Sorting Line
FAQ

Question 1: What’s the delivery time after I pay the deposit ?

Answer: We will delivery the goods within 10-15 working days after receipt of the prepayment.

Question 2: Is mineral samples analysis available?

Answer: Sure, we supply samples analysis service for free. After the testing, we will give you the reasonable flow chart, suitable solution and equipment selection.

Question 3: Do you have client in my country?

Answer: Our products have exported to Zambia, Cameroon, Tanzania, Malaysia, Indonesia, the Philippines, Vietnam, Myanmar, Korea, Singapore, Thailand, Mongolia, Ghana, Sudan, Serbia, Kazakhstan, Canada, Nigeria, Australia, Chile, Brazil, Columbia, Ecuador, Peru, Bolivia, etc

Question 4: How long of your machine quality guarantee terms ?

Answer: Quality guarantee time is one year(wearing parts excluded).
