Professional Moving Trommel Screen for Easy Maintenance Composting Screening

Name: Professional Moving Trommel Screen for Easy Maintenance Composting Screening
Brand: Sinolion
Price: 4 USD

Quality Professional Moving Trommel Screen for Easy Maintenance Composting Screening for sale

Applicable Industries : Energy & Mining

Showroom Location : Canada, United States, Germany, South Africa

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Bearing, Pump

Condition : New

Type : Circular

Application : Ore, compost,topsoil,cattle and sheep dung

Place of Origin : Henan, China

Brand Name : Sinolion

Voltage : 380V/415V/440V

Dimension(L*W*H) : 3150*1100*1650mm

Weight : 770 KG

Warranty : 1 Year

Product name : Mobile trommel screen

Installation : supply manual to guide user

Keywords : automation

Certification : CE ISO

Feeding size : less than 300mm

Discharge size : less than 6mm or as request

Color : yellow, white, red, blue, gray( or as client request)

MOQ : 1Set

Feature : Easy Maintenance

Price : $4,100.00/sets 1-1 sets

MOQ : 1 unit

Contact Now

Professional Moving Trommel Screen for Easy Maintenance Composting Screening

High Quality Moving Trommel Screen Designed For Professional Screening Composting

The mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel. It has the following characteristics: 1. Smooth operation and low noise; 2. Simple structure, maintenance Convenient; 3. The screen holes are not easy to block; 4. The screening efficiency is high; 5. The screen has a long service life and is easy to replace.

Structure and Principle

The mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts. The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.

Model	Trommel diameter (mm)	Trommel length (mm)	Capacity (m3/h)	Weight (Kg)	Dimensions (LWH)
MTS0818	800	1800	≤15	650	3.151.11.65

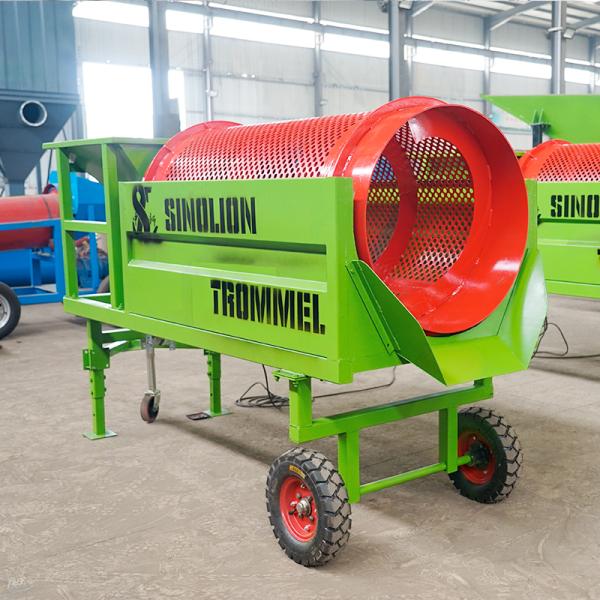

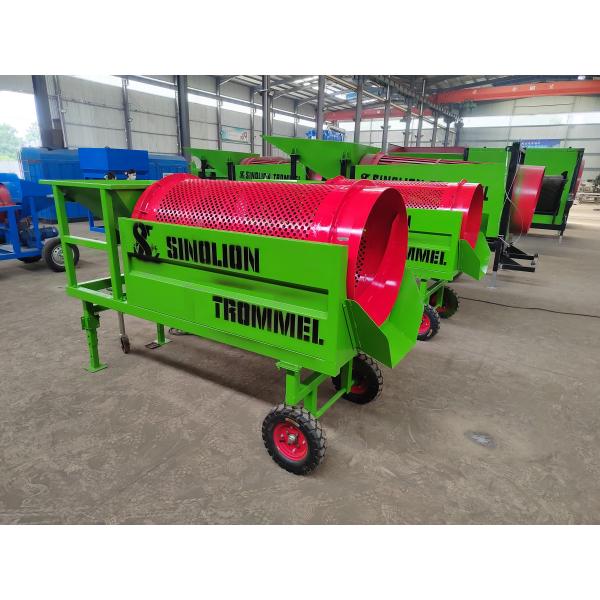

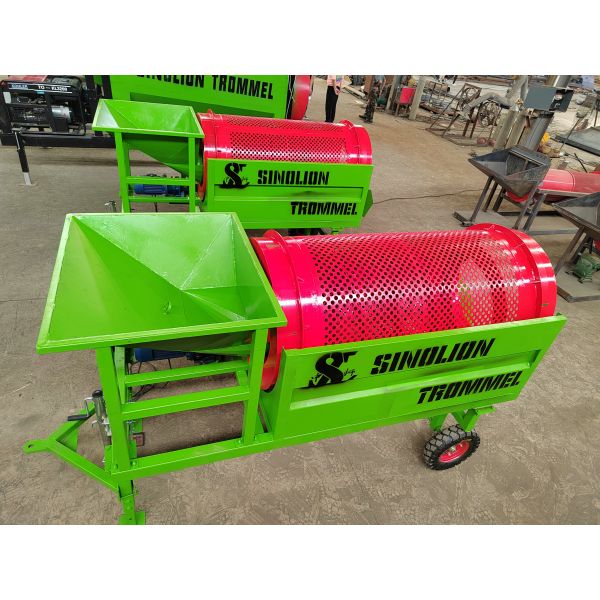

Professional Moving Trommel Screen for Easy Maintenance Composting Screening Images
