Blue Gold Separation Trommel for Multiple Material Output and Double Screen Efficiency

Name: Blue Gold Separation Trommel for Multiple Material Output and Double Screen Efficiency
Brand: sinolion
Price: 7 USD

Quality Blue Gold Separation Trommel for Multiple Material Output and Double Screen Efficiency for sale

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Other

Showroom Location : Canada, United States, Australia

Condition : New

Type : Gravity Separator

Production Capacity : 98%

Place of Origin : Henan, China

Brand Name : sinolion

Voltage : 220V/380V

Dimension(L*W*H) : 4300*1650*2220

Weight : 1900 KG

Warranty : 1 Year

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Engine, Gearbox

Key Selling Points : Long Service Life, High Separation Efficiency

Customizable : logo / packing / graphic

Installation : supply manual to guide user

Double screen : Multiple material output

Color : yellow, white, red, blue, gray( or as client request)

Packaging Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.

Port : Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( as client request)

Supply Ability : 50 Set/Sets per Month gold trommel screening plant

Price : $7,750.00/sets 1-1 sets

MOQ : 1 unit

Contact Now

Product Description

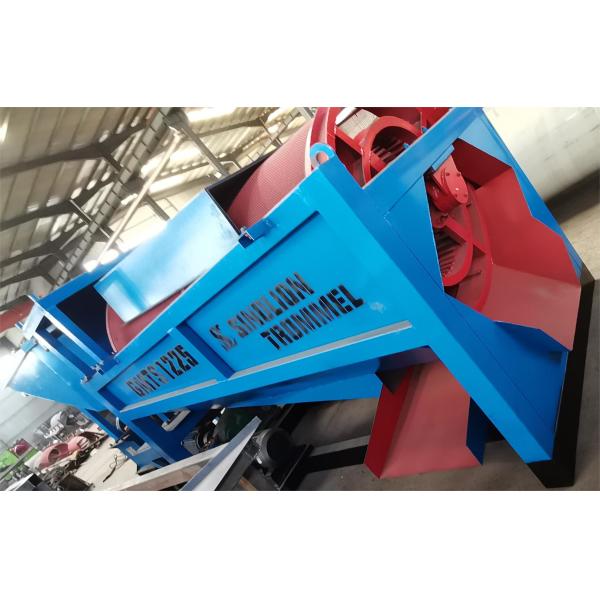

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold、alluvial gold and rock gold .Its advantages are flexible movement, simple operation,convenient cleaning， high gold recovery capacity， and obvious gold selection effect, and the equipment can work in different construction and operation areas, it can be moved with a trailer hitch ,and the operation cost is low.

Blue Gold Separation Trommel for Multiple Material Output and Double Screen Efficiency

Working Principle

1.Raw material feeding
The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper.
2. Washing
The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen.
3. Fine gold collection
Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.

The drum part is made of round steel and manganese wire. It has three outlets, which can screen materials of three specifications, and the screen can be designed with two apertures, which improves the screening efficiency of materials and saves working time. , the maximum size of the product under the screen is 100 mm, the middle is 10-50 mm, and the thinnest is up to 3 mm.

Technical Parameters

Model	Capacity (t/h)	Power (kw)	Diameter (mm)	Length(mm)	Discharge(mm)	Input(mm)	Dimension (mm)
GMTS0519	5—10	1.5	500	1910	≤300	0—100	300010001800
GMTS1020	10—30	4	1000	2000	≤300	0—100	320014001900
GMTS1225	30—50	5.5	1200	2500	≤300	0—100	430016502220
GMTS1548	80—150	11	1500	4800	≤300	0—100	800022003600
GMTS1848	100—200	15	1800	4800	≤300	0—100	800022004000

All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.

Company Profile

We have rich experience in the production of mineral processing equipment.

We have professional engineers who can customize suitable equipment for your situation, welcome to consult!
