Gravity Separator for Alluvial Gold Wash Machine Processing Plant Production Line

Name: Gravity Separator for Alluvial Gold Wash Machine Processing Plant Production Line
Brand: sinolion
Price: 17 USD

Quality Gravity Separator for Alluvial Gold Wash Machine Processing Plant Production Line for sale

Applicable Industries : Manufacturing Plant, Construction works , Energy & Mining

Showroom Location : None

Condition : New

Type : Gravity Separator

Production Capacity : 100-200 TONS/HOUR

Place of Origin : Henan, China

Brand Name : sinolion

Voltage : 220V/380V/415V/480V

Dimension(L*W*H) : Varies

Weight : 6800 KG

Warranty : 1 Year

Marketing Type : Ordinary Product, Hot Product 2023

Machinery Test Report : Provided

Video outgoing-inspection : Provided, Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Pump, Engine

Key Selling Points : Long Service Life, obvious gold-selected effect

Machinery Test : Provided

Certification : CE ISO

Sieve : Manganese wire

Double screen : Multiple material output

Packaging Details : All products will be processed to be rustproof and moisture proof before delivery.
20GP container or 40GP container
Equipment is packed with plastic wrap or steel case, depends on machine weight.
Motor is packed with steel case or wooden case.

Port : Qingdao, Tianjin, Lianyungang, Shanghai Guangzhou( as client request)

Supply Ability : 50 Set/Sets per Month gold trommel screening plant

Price : $17,900.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Product Description

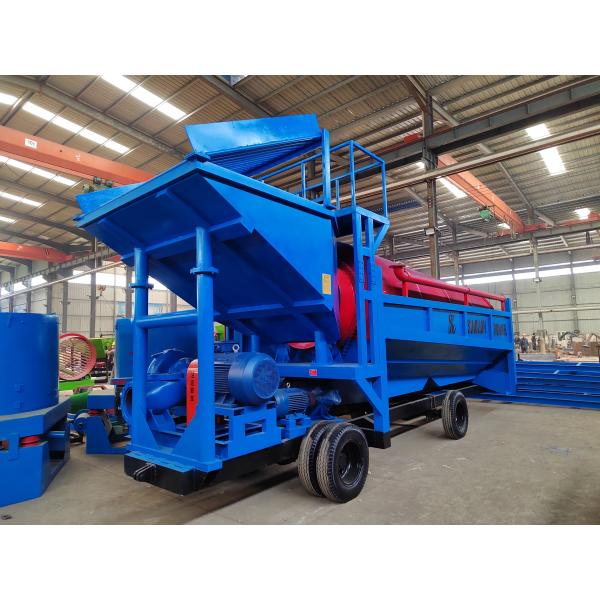

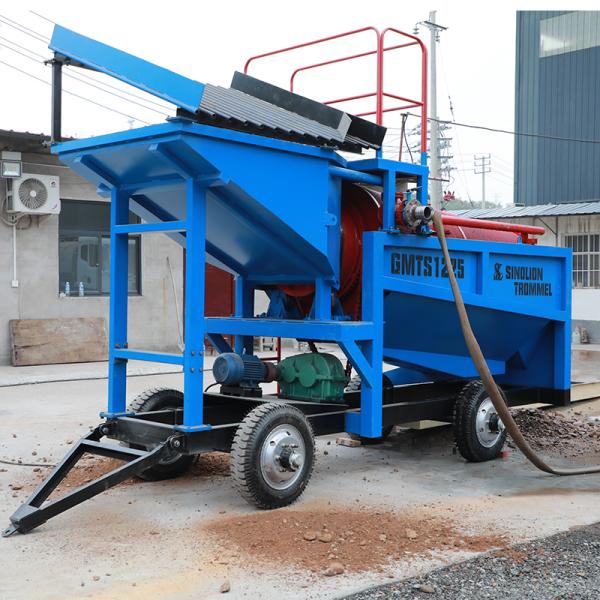

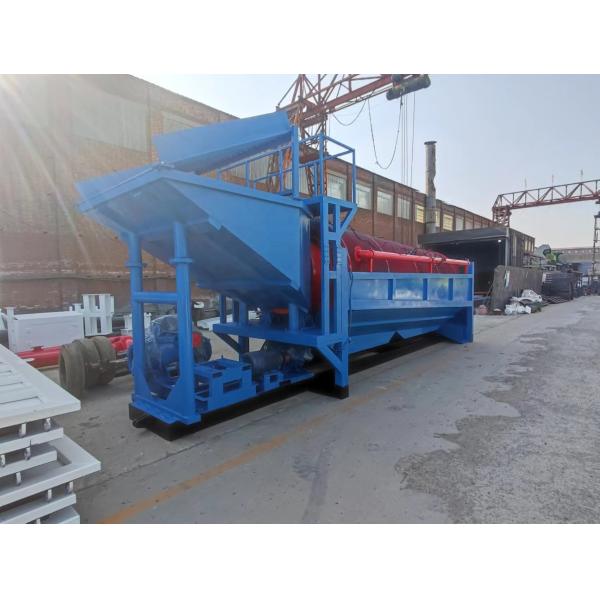

Our equipment is called gold mobile trommel screen, which is used to collect gold from placer gold and alluvial gold. Its advantages are flexible movement, simple operation, high efficiency, and obvious gold selection effect.

Gravity Separator for Alluvial Gold Wash Machine Processing Plant Production Line

Introduction

Due to the large processing capacity of this equipment, it is additionally equipped with a manual operation table to facilitate the observation of material processing.

We have professional engineers who can customize suitable equipment for your situation, welcome to consult!

High-capacity equipment

1> Raw material feeding The raw material input through the hopper inlet is pushed into the screen drum by the powerful water pressure of the nozzle loaded in the hopper. 2> Washing The screen barrel has a built-in galvanized seamless water spray pipe (diameter 42mm), and the raw materials are washed by water and selected through the gold panning tank through the rotation of the trommel screen. 3> Fine gold collection Light dirt and sand are washed away by the water, and heavier gold will gather in the gold blanket.

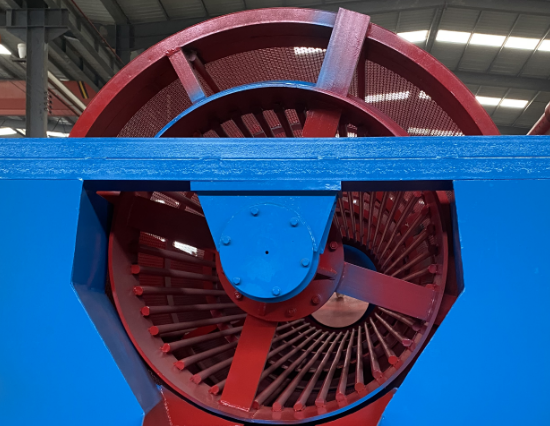

The drum part is made of round steel and manganese wire, and has three discharge ports, which can screen materials of three different specifications;
In addition, the screen can be designed with two different sizes of apertures, which greatly improves the screening efficiency of materials and reduces working time. The maximum product under the screen is 100mm, the middle is 10-50mm, and the thinnest can be up to 3mm.

Technical Parameters

Model	Capacity (t/h)	Power (kw)	Diameter (mm)	Length(mm)	Discharge(mm)	Input(mm)	Dimension (mm)
GMTS0519	5—10	1.5	500	1910	≤300	0—100	300010001800
GMTS1020	10—30	4	1000	2000	≤300	0—100	320014001900
GMTS1225	30—50	5.5	1200	2500	≤300	0—100	430016502220
GMTS1548	80—150	11	1500	4800	≤300	0—100	800022003600
GMTS1848	100—200	15	1800	4800	≤300	0—100	800022004000

Packing & Delivery

All products will be processed to be rustproof and moisture proof before delivery. 20GP container or 40GP container Equipment is packed with plastic wrap or steel case, depends on machine weight. Motor is packed with steel case or wooden case. Control panel is packed with wooden case. Loading container in factory.
