Gravity Separator Mini Mobile Gold Trommel Screen for Small Panning Machine in White

Name: Gravity Separator Mini Mobile Gold Trommel Screen for Small Panning Machine in White
Brand: Sinolion
Price: 4 USD

Quality Gravity Separator Mini Mobile Gold Trommel Screen for Small Panning Machine in White for sale

Applicable Industries : Energy & Mining

Showroom Location : Canada, United States, Morocco, South Africa, Nigeria

Condition : New

Type : Gravity Separator

Production Capacity : 5-10t/h

Place of Origin : Henan, China

Brand Name : Sinolion

Voltage : 220V/380V

Dimension(L*W*H) : 3000*1000*1910mm

Weight : 520 KG

Warranty : 1 Year

Marketing Type : Hot Product 2023

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Engine

Key Selling Points : High Rigidity, Sustainable

Product name : mobile gold trommel screen

Application : gold mining

Screen material : steel bar, steel plate punch hole, steel wire woven

Feeding size : less than 300mm

Installation : supply manual to guide user

Dimension : according to capacity

Discharge size : as request

Color : yellow, white, red, blue, gray( or as client request)

Certification : CE

Price : $4,080.00/sets >=1 sets

MOQ : 1 unit

Contact Now

Gravity Separator Mini Mobile Gold Trommel Screen for Small Panning Machine in White

Mini Mobile Gold Trommel Small Panning Machine Gold Trommel Screen

Mobile Gold Mining Equipment Is Represented By Trommel Screen, Which Is Also Widely Used In Separation Technology. Its Working Principle Is To Control The Size Of Particle Size To Control The Separation Of Waste, Thus Improving The Separation Efficiency. The Advantages Of Small Trommel Screen Are Obvious, And It Is More Flexible And Convenient Than Large-scale Mobile Screen In Terms Of Movement. Trommel Screen Internal Equipment, The Main Roller Screen Shall Have Motor, Reducer, Roller Device, Frame, Seal Cover, Inlet And Outlet Composition. The Roller Device Is Tilted On The Rack And Passed Through The Drum Device. The Axles Are Connected Together To Drive The Drum Device To Rotate Around Its Axis.

Structure and Principle

The Alluvial Gold Trommel Screen Machine Uses The Principle Of Gravity Separation, The Original Ore Through A Layer Of Screening And Classification Under The Impact Of Water Into The Agitation Sluice Chute For Next Step Coarse Separation, If There Is Capillary Gold In The Original Mine, Adding The Agitation Chute Fixed Chute In The Tail To Avoid Tails Running. If There Is Clay Mud In Original Ore, We Will Add Stirring In Front Of The Screen And Flushing Device In Screen Drum, So That The Unfavorable Factors Caused By High Mud Content Can Be Solved Well, And Can Be Adjusted According To Ore Body Condition And Site.

1. Input Of Raw Materials Raw Materials Inputted Through The Entrance Of The Hopper Will Be Pushed Into The Trommel Screen By The Strong Water Pressure Of The Shower Equipped In The Hopper.

2. Selection And Cleaning Of Raw Materials Raw Materials Of The Trommel Screen Will Be Cleaned And Selected By The Rotation Of Trommel Screen And By Watering Of The Shower Inside, Run Into The Gold Dust Separate Panel.

3. Collecting Of Gold Dust Separated Soil And Sands With Lighter Specific Gravity Will Flow Away But Gold Dusts With Greater Specific Gravity Will Be Staying In The Gathering Mat To Be Collected.

Product Name	Gold Trommel Screen
Model	GMTS0519
Capacity (t/h)	5-10
Power(kw)	1.5
Diameter(mm)	500
Length(mm)	1910

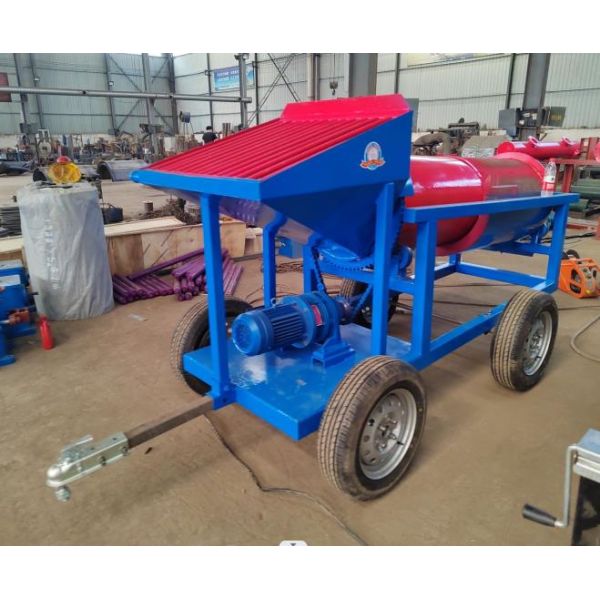

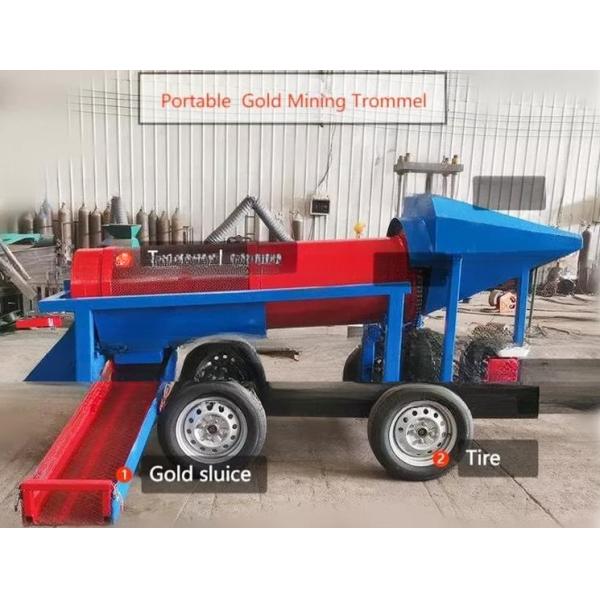

Gravity Separator Mini Mobile Gold Trommel Screen for Small Panning Machine in White Images
